Frequency Range :1 port: 800-960/1710--2700MHz 2 port: 1710-2700 Gain :2-3/3dBi VSWR:≤1.5 Input Impedance :50Ω Polarization :Vertical Horizontal Half Power Angle:360° Vertical Half Power Angle:80+10°/ 80+10° PIMD 3th:-85DBM(@2W) Front To Back Ratio:≥ 15dB Max Input Power :50W

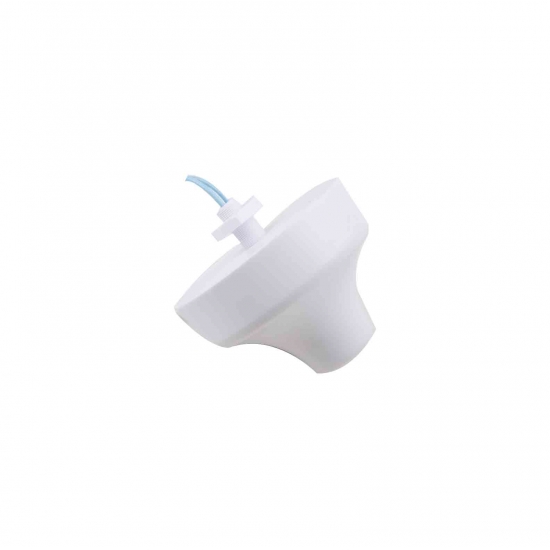

This multiband whwireless antenna WH-4G-2.4-5.8GHz-D3 combines 3 different antenna types in a small enclosure. versatile and convenient solution for improved signal reception in various applications.one antenna modules for the 4G/3G/2G connectivity covereing 698 - 960 MHz and 1710 - 2700 MHz frequency bands. one WiFi antenna modules, work in the 2.4GHz and 5.8GHz frequency range. The third antenna is for the GPS/GNSS signal, providing a stable and fast connection for seamless data transmission and navigation. The 3-in-1 design makes it a cost-effective and space-saving option for those looking to improve multiple signals in a single device. Enclosure A very small round plastic design. Thoughtfully design prevents any damage from water and is also corrosion-resistant. At the bottom of the antenna are three 3m long cables with SMA male (RP-SMA female for WiFi) connectors. The enclosure of the antenna is made of robust, weatherproof plastic and can even withstand extrem temperatures. Application Areas Applications for industrie vehicles, M2M and other IoT Internet connectivity from 4G to WiFi and provide busses, trains etc. Linking public vehicles to data networks Control trucs, tractors and other vehicles and provide communication between them GPS location helps find important vehicle fleet management, mobile video and remote monitoring
This is Machine 2 Machine (M2M) & Internet of Things (IoT) heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications screw mounting;UV protact MIMO 2 cable 2 connector mimo small size;high performance;IP67
