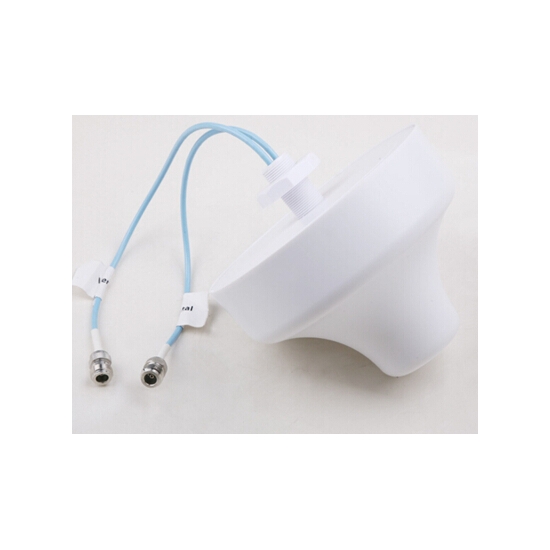

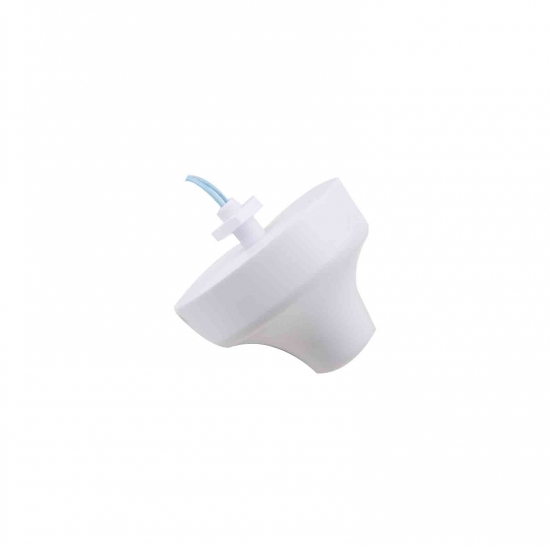

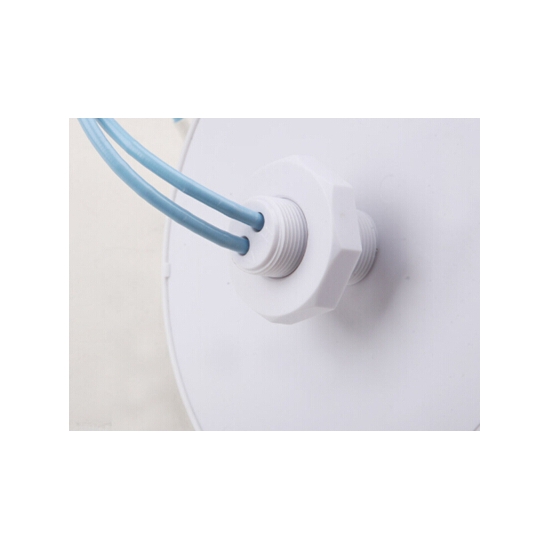

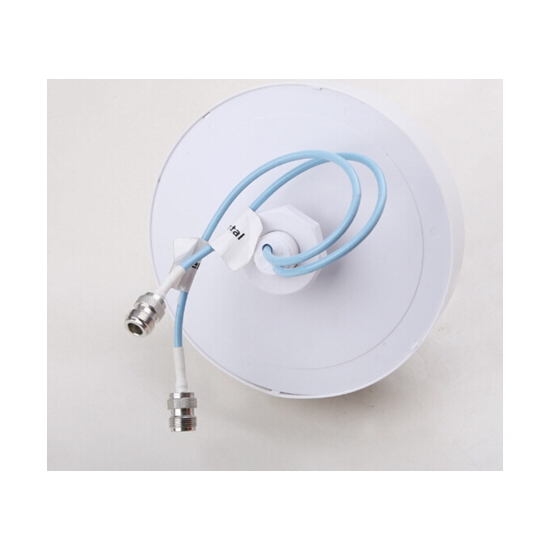

indoor mimo ceiling antenna

3G;4G LTE;MiMo;PIMD 3th:-85DBM(@2W);Φ180x130mm
  • brand:

    whwireless
  • item no.:

    WH-LTE-C3
Inquiry now
Frequency Range :1 port: 800-960/1710--2700MHz
2 port: 1710-2700
Gain :2-3/3dBi
VSWR:≤1.5
Input Impedance :50Ω
Polarization :Vertical
Horizontal Half Power Angle:360°
Vertical Half Power Angle:80+10°/ 80+10°
PIMD 3th:-85DBM(@2W)
Front To Back Ratio:≥ 15dB
Max Input Power :50W

Connector Type:2XSMA female
Cable Type:RG58U;3 meterX2
Lightning Protection:DC Ground
Working Temperature:-40℃~﹢65℃
Antenna Weight:400g
Size:Φ180x130mm
Rated Wind Velocity :210km/h
Antenna Cover Material:ABS
Color:White

3G/4G Router Broadbad Radio
Dual LTE/UMTS/GSM Router with WLAN Access
2G/3G/4G Cellular Network Operators
Fixed Wireless Phone Visafone Fixed Wireless

Send a Message

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
