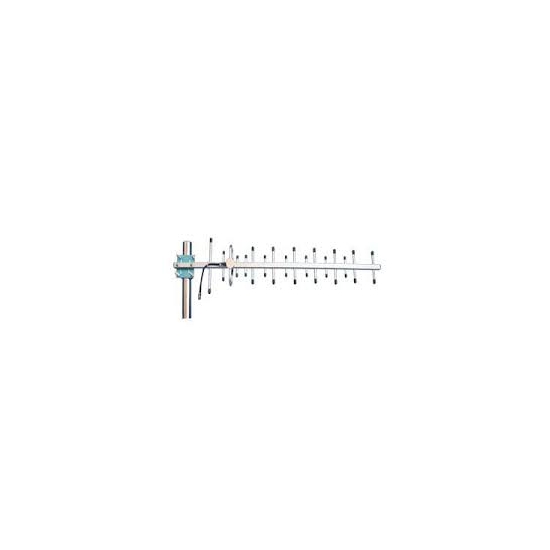

gsm dual bang yagi 12dBi antenna


telemetry data communications antenna WH-800-1900-Y12
gsm dual bang yagi 12dBi antenna gsm dual bang yagi 12dBi antenna gsm dual bang yagi 12dBi antenna

gsm dual bang yagi 12dBi antenna

12dBi yagi antenna
SMA male
740×16×16mm
Aluminium alloy

  • brand:

    whwireless

  • item no.:

    WH-800-1900-Y12

  • product origin:

    china
Inquiry now
Frequency Range-MHz:870-960/1850-1990-MHz
Gain-dBi:12-dBi
beamwidth －°:H:49° ; V:38°
F/B Ratio:≥18
VSWR:≤2.0
Polarization:vertical
Maximum Power-W:100 -W
Input Impedance-Ω:50 -Ω

Connector:N Female or customized
Dimension-mm:740×16×16-mm
Weight-kg:290g
Working Temperature:-40 to +60-℃
Material:Aluminum alloy

• GSM receiver
• GSM in building cover
• Multi-SIM GSM Gateway
• Smart Meter Communication data acquisition
• 900MHz spread spectrum
• M2M Telemeter GSM Telemeter
• Remote Control System
• GSM JAVA modem
• GSM VoIP Module
• Cellular & Wireless Video
• In-building Cellular Wireless coverage solutions
