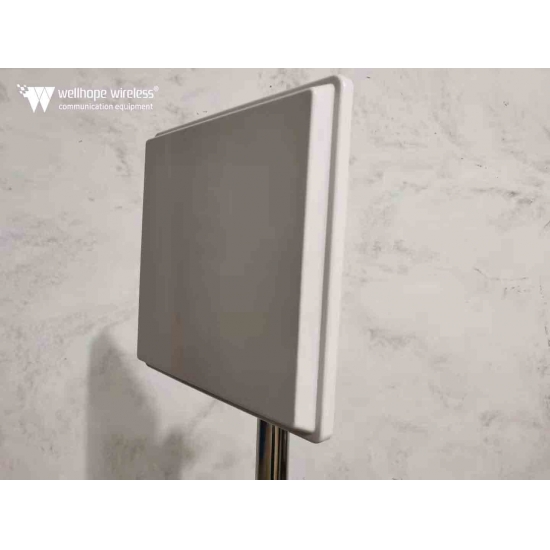

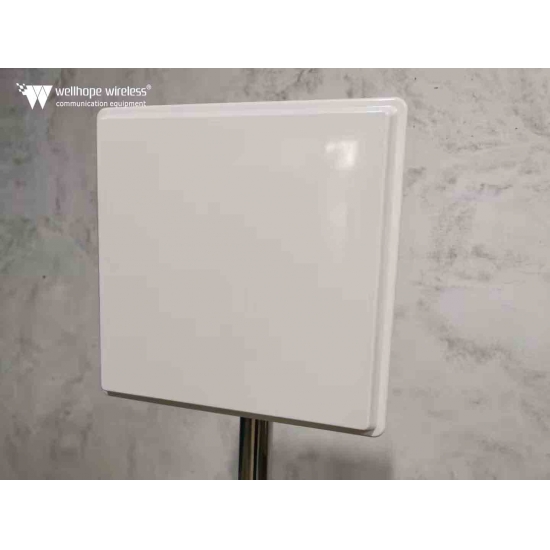

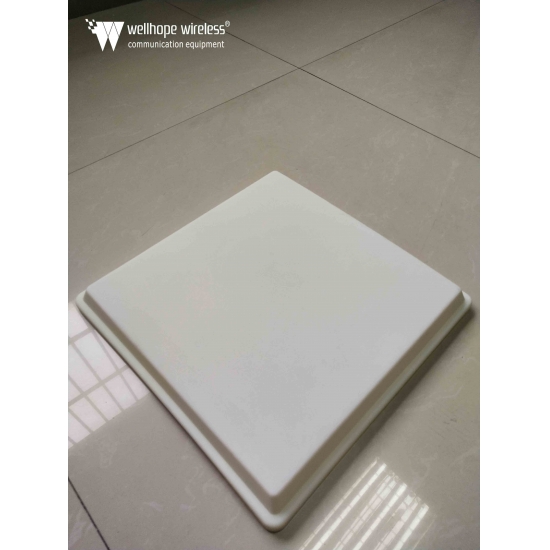

GNSS 2.4GHz and 5GHz Wireless LAN flat panel antenna

GNSS 2.4GHz and 5GHz Wireless LAN flat panel antenna

GNSS flat panel antenna

Huge Frequency Range: 1570-1630MHz&2400-2500MHz&5150-5850MHz

wide Band Antenna GNSS WiFi 5G-6G

Weatherproof, suitable for outdoor antenna use

Includes Tilt mount for masts

N female socket

Looking for a great deal on 1570-1630MHz&2.4-2.5GHz&5150-5850MHz Flat Panel Antenna Series | Single Polarization 12dBi 35deg? Explore a wide range of the best wireless antennas on Excel Wireless to find one that suits you! Besides good quality, you’ll also find plenty of discounts. Shop now.

Frequency:1570-1630MHz&2400-2500MHz&5150-5850MHz, gain:12dBi, Wireless LAN Flat Antenna series designed suitable for outdoor use in the 2.4GHz and 5GHz GNSS ISM band including IEEE 802.11b, 802.11g and 802.11n and Bluetooth applications. flat Antenna series' construction features sealed internal elements and an aesthetic UV-stable, UL flame rated white plastic dome. Can be wall or mast mounted using U-bolts. Can be installed for either vertical or horizontal polarization.

brand:
whwireless
item no.:
WH-152458-FP11X3
payment:
T/T,Alipay,WeChat Pay,Paypal
product origin:
china
color:
white
lead time：
5working day

Inquiry now WhatsApp

Frequency range:1570-1630MHz&2400-2500MHz&5150-5850MHz

Gain:11/12/12dBi

VSWR:≤1.5

polarization:Vertical

Horizontal beam width:35°

Vertical beam width:35°

Input impedance:50Ω

F/B:＞12dB

Max Power:100W

mounting method:“U” bolt

antennaConnector:N female

weight:1.5Kg

Size:380X380X45(MM)

Rated wind velocity:210kg/h

Colour :white

Cable type:RG58

RF Cable length:5 meter N male—SMA male

Working Temperature:-40℃--+65℃-

Waterproof IP65

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS
