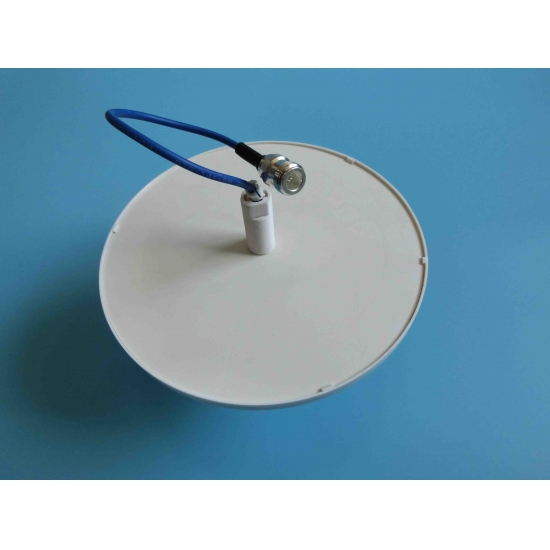

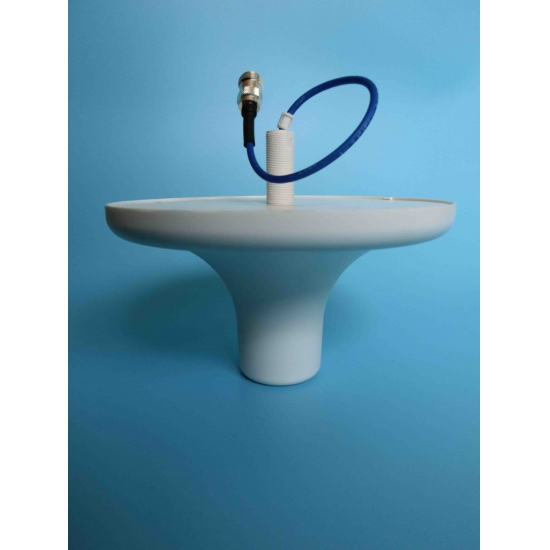

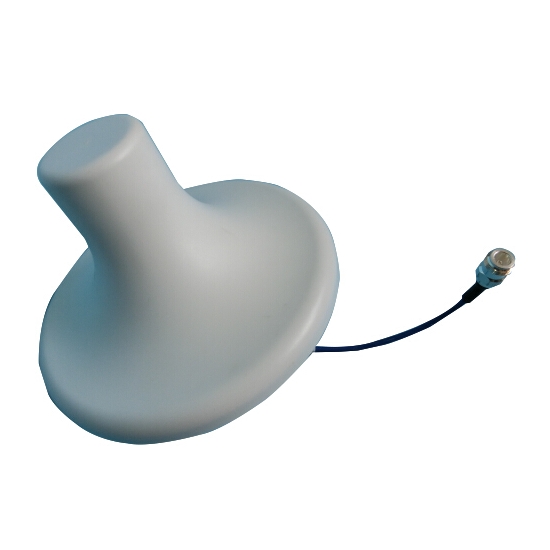

ceilling 698-960/1710-2700MHz antenna

5dBi
N female
Φ204*115(mm)4g wireless internet 4g verizon wireless 4g wireless broadband
  • brand:

    whwireless
  • item no.:

    WH-4G-C05
Inquiry now
Frequency Range:698-960/1710-2700 (MHz)
Input Impendence:50 (Ω)
VSWR:≤ 1.5
Gain:2/5 (dBi)
Max Input Power:50 (W)
Three order intermodulation(20W):-107(dBm)
Polarization Type:Vertical
Connect Type:SMA male or N female
Lightning Protection:DC Ground

Working Temperature:-30℃~﹢45℃
Storage Temperature:-40℃~﹢55℃
Weight:340 (g)
Size:Φ204*115(mm)
Radome material:ABS
Color:white

• Compatible with LTE, GSM, CDMA, PCS, 3G;4G wireless devices
Bridge antenna in Point to Point applications
• Designed for indoor or outdoor applications
• 3G/4G Dual Band AC Router 3G Wireless N300 VoIP Route
• 2G/3G/4G Cellular Network Operators
3G/ 4G LTE Multi WAN WiFi AP
wireless router
4G antenna
