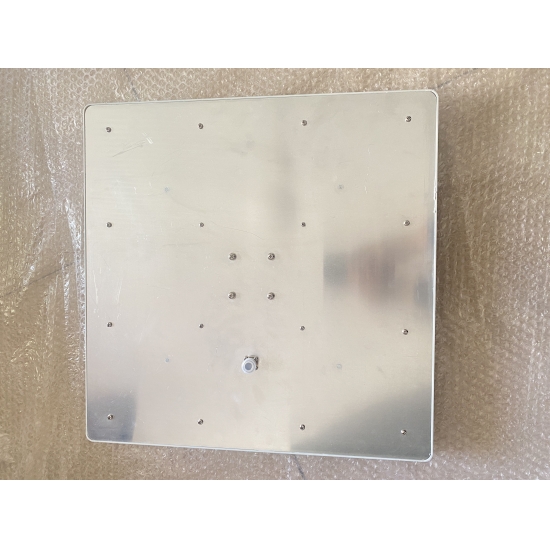

900MHz flat panel 13.5dBi antenna

IP65 outdoor panel antenna outdoor antenna

The WH-900-FP13.5 is also marketed as a high-performance antenna with 13.5 dBi of gain and broad coverage. It is suitable for both indoor and outdoor installations and is ideal for a variety of applications, including 900 MHz ISM band, 900MHz cellular, SCADA, RFID, LPWAN/IoT/M2M applications, wireless video links, and NLOS (near line of sight) applications.

WH-900-FP13.5 features a plastic radome for all-weather operation, an integral N-Female connector, and direct ground protection. The included tilt and swivel mast mount allows for installation at various degrees of incline for easy alignment. Additional information and complete specifications can be obtained from the manufacturer or supplier

brand:
whwireless
item no.:
WH-900-FP13.5
payment:
T/T
product origin:
china
color:
white
lead time：
5working day

Inquiry now

Frequency range:900-930MHz

Band width:30MHz

Gain;13.5dBi

VSWR;≤1.5

polarization:Vertical

Horizontal beam width:70°

Vertical beam width;60°

Input impedance:50Ω

F/B:≥13dB

Max Power;50W

mounting method;“U” bolt
Connector;N female
weight;2Kg

Size:440X440X40(MM)

Pole Diameter:Φ35~φ50 mm

Rated Wind Velocity:210 km/h

Radome material:ABS

Colour:White

Lighting Protection:DC Ground

Working Temperature:-40℃~﹢65℃

Waterproof IP65

MOQ:2PCS

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box
