8km distance receive and transmit 5G 4G indoor and outdoor in one patch antenna

8km distance receive and transmit 5G 4G indoor and outdoor in one patch antenna

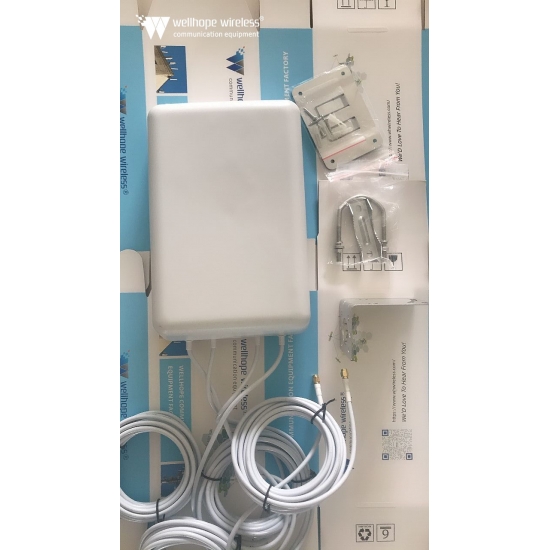

WHWIRELESS Panch 5G/LTE directional MIMO 4x4 high gain antenna WH-5G-PPX4, designed to improve signal strength and reliability for your wireless connections. Whether you need to boost your indoor patch network or extend coverage to outdoor areas with pole mounting, this versatile antenna has got you covered.

Featuring advanced 4x4 MIMO technology, the Panch antenna provides efficient multi-path signal processing and high data rates, making it ideal for demanding applications such as video streaming, online gaming, and IoT. With a frequency range that covers 5G bands and LTE bands like LTE 700/960/1710 / 2170/2700/3400/3800, you can enjoy seamless connectivity across multiple networks and devices.

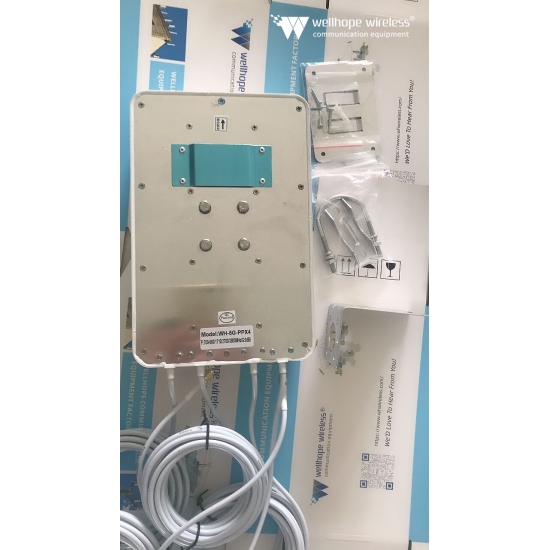

WH-5G-PPX4 is designed to be easy to install both indoors and outdoors. The antenna can be mounted on a pole outside or attached to an indoor patch network.

brand:
whwireless
item no.:
WH-5G-PPX4
payment:
T/T
product origin:
china
color:
white
lead time：
5working day

Inquiry now WhatsApp

Frequency Range:698-960/1710-2700/3400/3800MHz

Gain:8dBi X4

VSWR:≤2

Input Impedance:50Ω

Polarization:Vertical and Horizontal

Horizontal Half Power Angle:85/75±2°

Vertical Half Power Angle:65/55±2°

Front To Back Ratio:≥ 10dB/≥ 15db

Max Input Power:50W

Connector Type:4xSMA-male

cable:RG58 ;500cmX4

Lightning Protection:DC Ground

Working Temperature:-40℃~﹢65℃

Antenna Weight:750g

Size:260x170x60mm

Mounting method:Patch/PoleΦ35~55mm/indoor/outdoot both

Waterproof : IP65

Rated Wind Velocity:210km/h

Antenna Cover Material:ABS

colour:white
