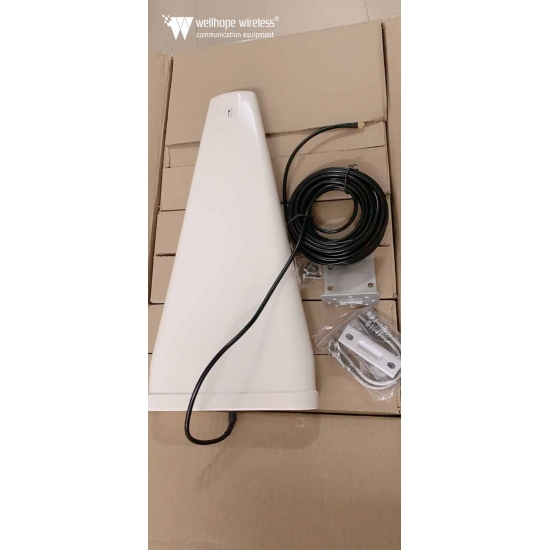

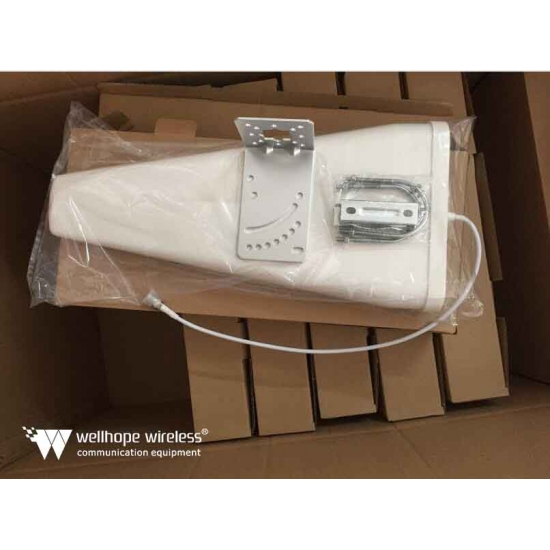

12dBi Yagi/ Log Periodic Antenna, 5G 4G LTE 3G 698-2700/4800MHz

12dBi Yagi/ Log Periodic Antenna, 5G 4G LTE 3G 698-2700/4800MHz

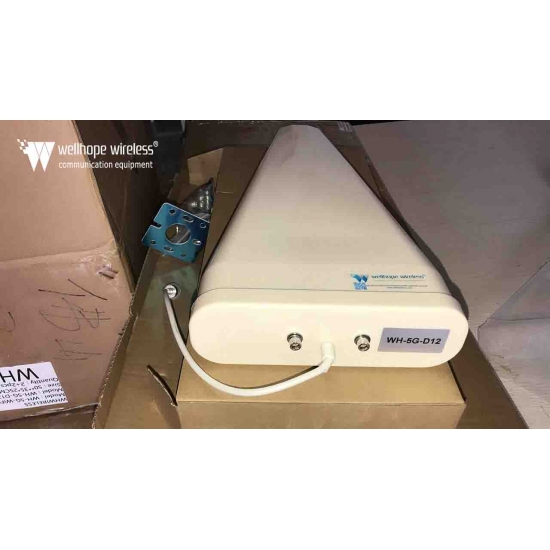

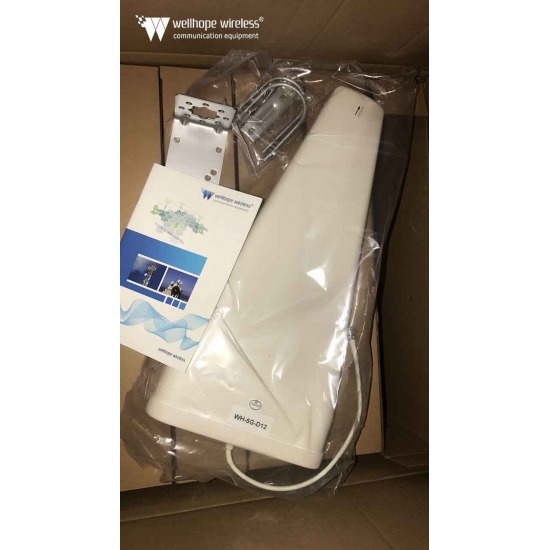

The WHWIRELESS log periodic antenna WH-5G-D12is a key device for 5G signal coverage in the community. With a frequency range of 600-6000MHz and a gain of 12dBi, it can effectively transmit and receive 5G signals.

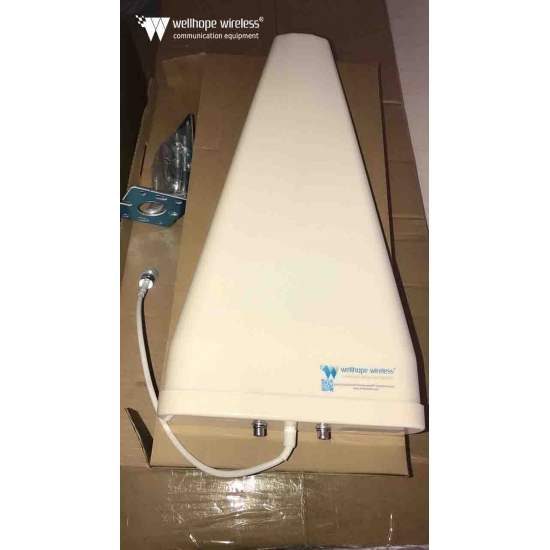

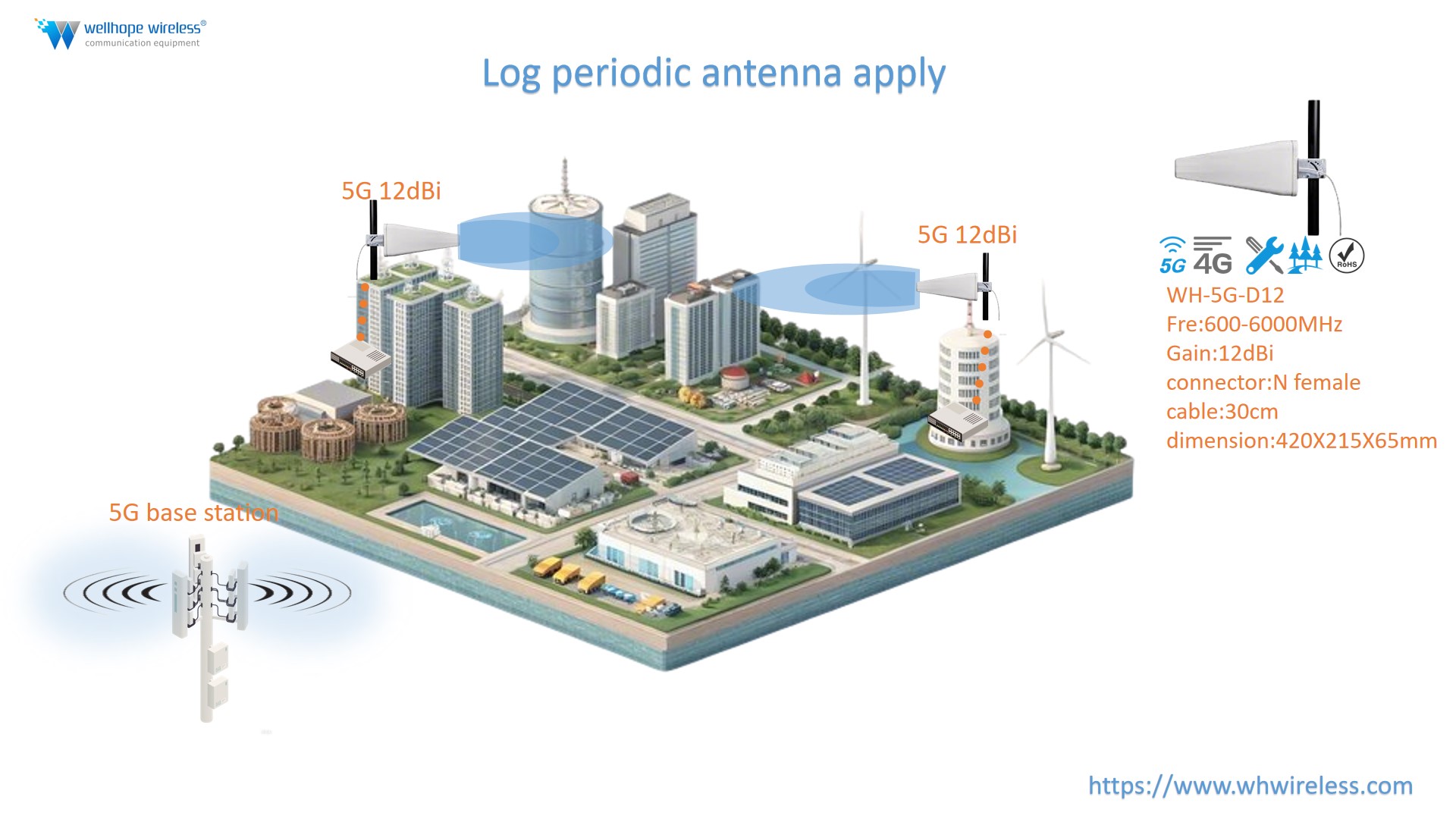

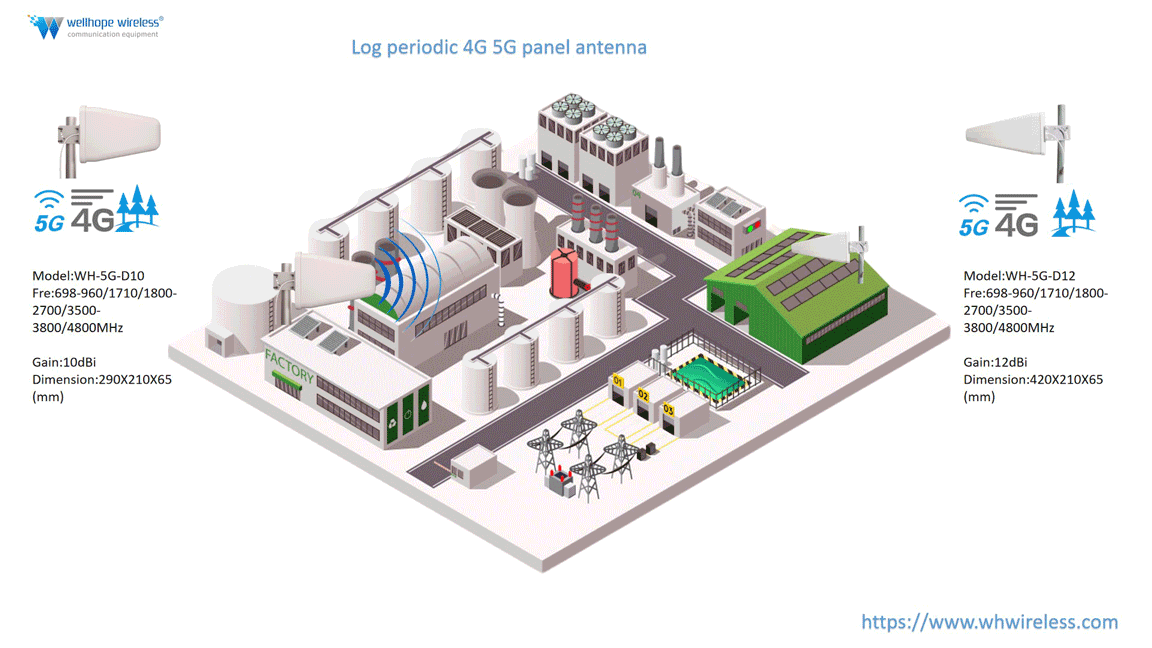

In the community shown, it is installed on buildings and other structures. The N - female connector and 30cm cable make installation convenient. Its dimensions of 420X215X65mm ensure it can be properly placed without taking up excessive space.

The antenna helps the 5G base station extend its coverage, enabling residents in the community to enjoy high - speed and stable 5G network services, whether they are at home, in public areas, or engaging in various activities.

brand:
whwireless
item no.:

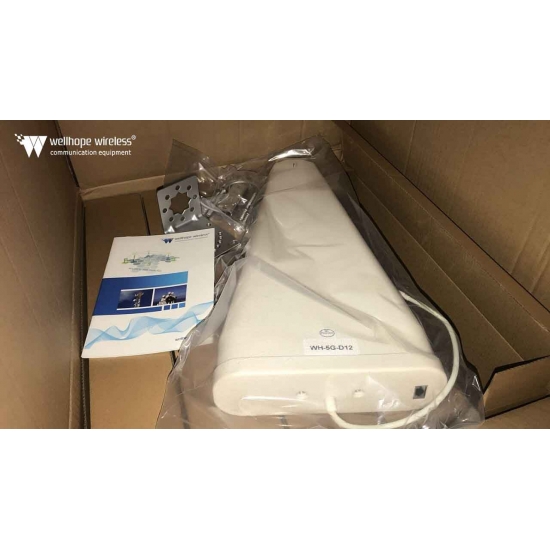

WH-5G-D12
payment:
T/T
product origin:
china
color:
white
lead time：
5working day

Inquiry now

Frequency Range;600-960/1710-2170 /2700/3800/4800/5150/6000MHz

Bandwidth;262/990/1000MHz

Gain;10/14DBI

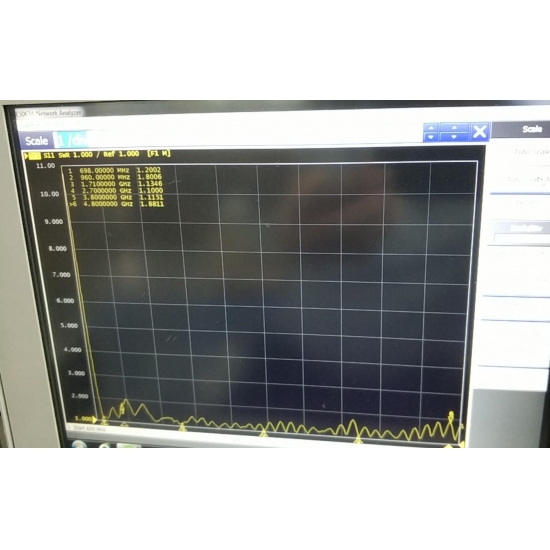

VSWR;≤1.8

Polarization;Vertical

Max power;100-W

Nominal Impedance;50-Ω

H plane;90°

E plane;60°

F/B;＞16dB

Weight;1100g

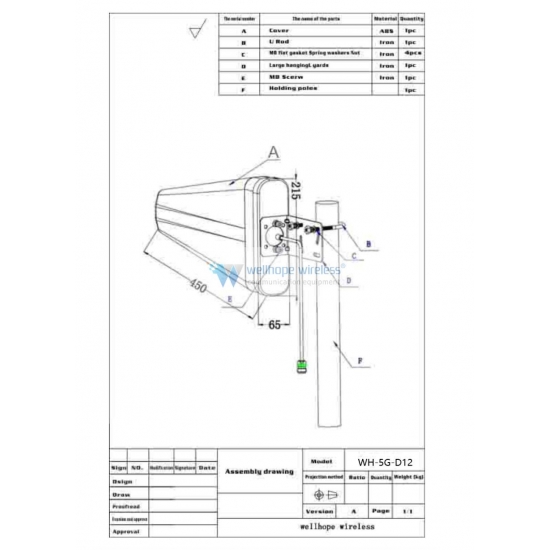

dimension;420x215x65mm

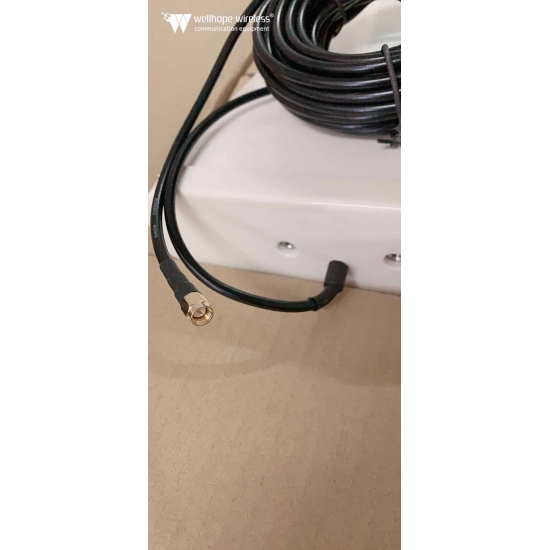

Cables:RG58; 0.3 meter

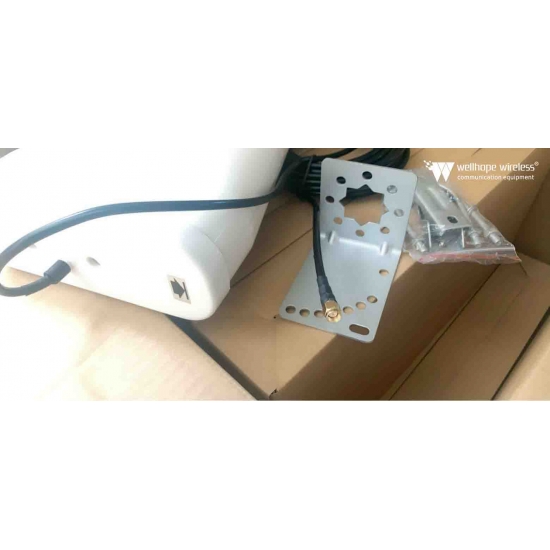

Connector:N-Type or Customized
