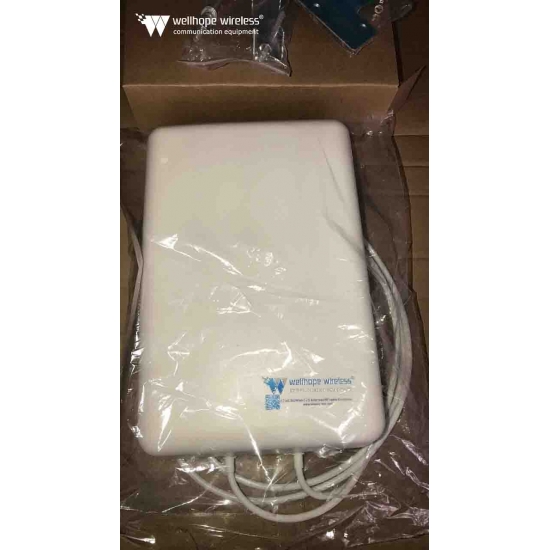

10km distance receive and transmit 5G and WiFi indoor and outdoor in one patch antenna

10km distance receive and transmit 5G and WiFi indoor and outdoor in one patch antenna

5G Iot antenna 4G antenna wifi antenna outdoor antenna IP65 waterproof antenna

This high gain multiband 5G 4G WiFi omni directinal antenna 8km distance receive and transmit.is designed for 700MHz (2G /3G/4G/5G), 900Mhz 1800MHz (2.4GHz), 2400-2480MHz 2600MHz and 5G 3800MHz (4G) frequency band and supports all established standards like GSM, 2G, 3G and 4G 5G(800 / 900 / 1800 / 2100 / 2700/3800). The antenna WH-5G-LTE9X2 has a gain of up to 9dBi and helps you to improve your 2G, 3G or 4G 5G connection even on long distances.

pole and wall mounting both

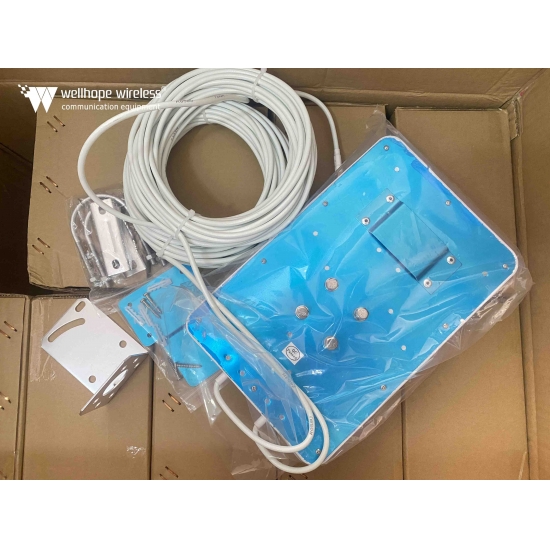

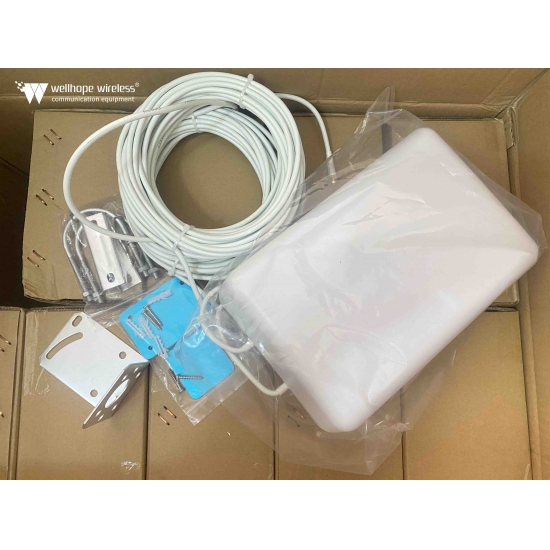

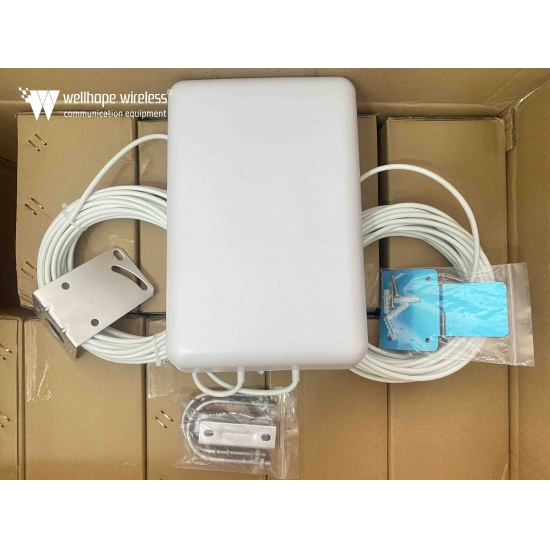

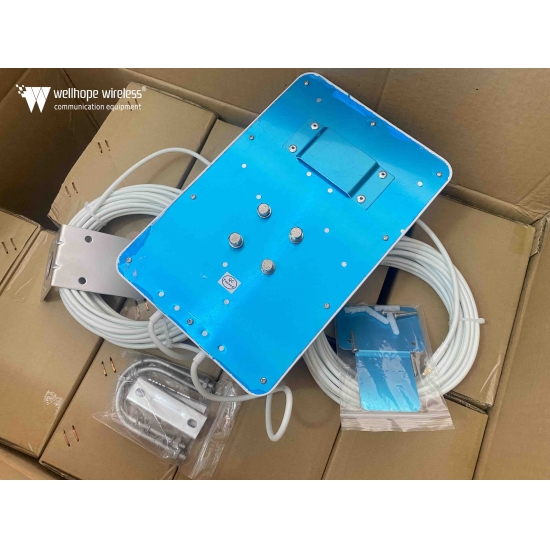

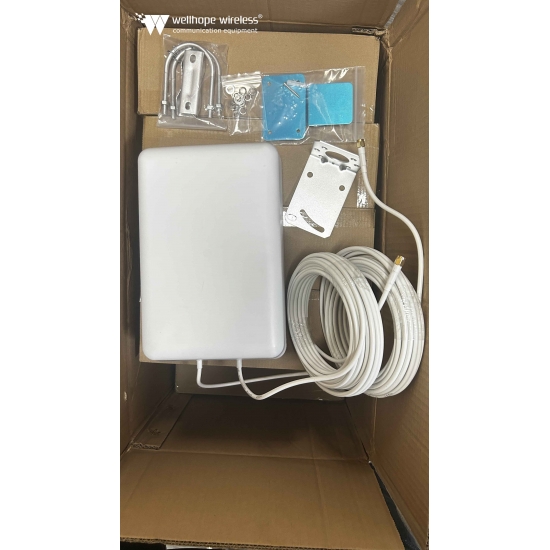

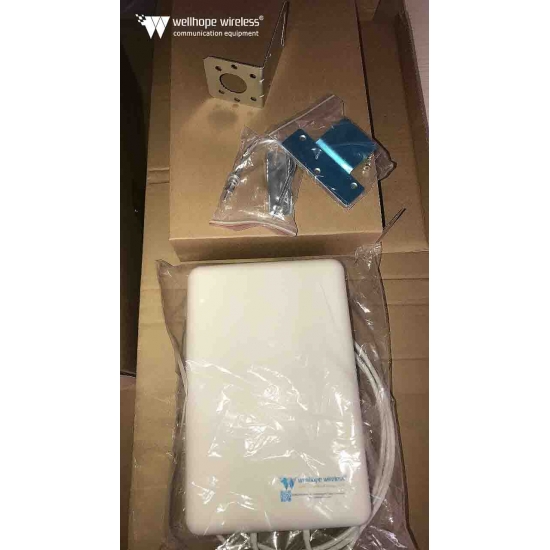

Easy install Pole and Wall Mounting Kit included both.The antenna is designed for mast/pole or wall handle installation. A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles) is included.

brand:
whwireless
item no.:

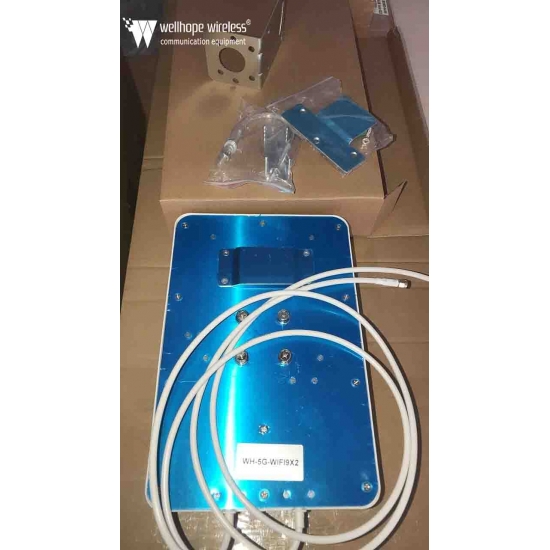

WH-5G-WiFi9X2
payment:
T/T
product origin:
china
color:
white
lead time：
5working day

Inquiry now

Frequency Range： port1：700-960/1710/1800/2700MHz/3800/4000MHz/WiFi 2400-2480MHz

port2：700-960/1710/1800/2700MHz/3800/4000MHz/WiFi 2400-2480MHz

Gain：9/9dBi

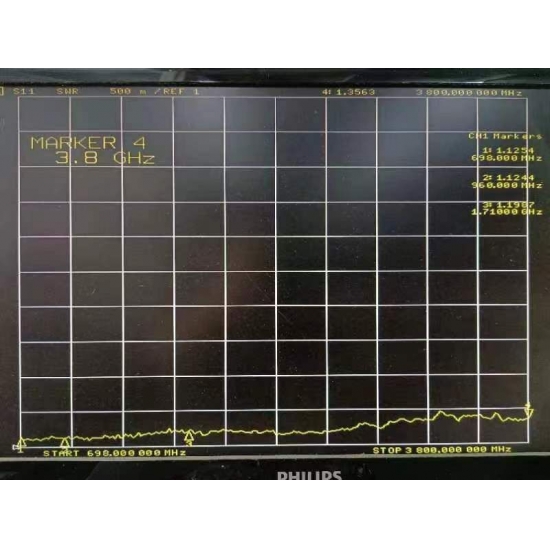

VSWR：≤2

Input Impedance：50Ω

Polarization：Vertical and Hrizontal

Horizontal Half Power Angle：70±2°

Vertical Half Power Angle：55±2°

Front To Back Ratio：≥ 10dB/≥ 15db

Max Input Power：50W

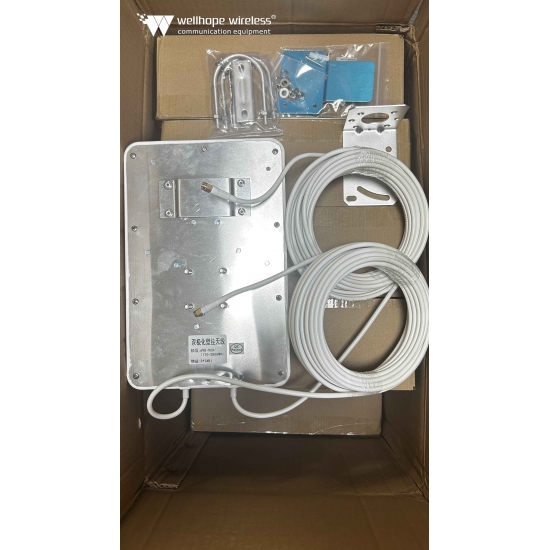

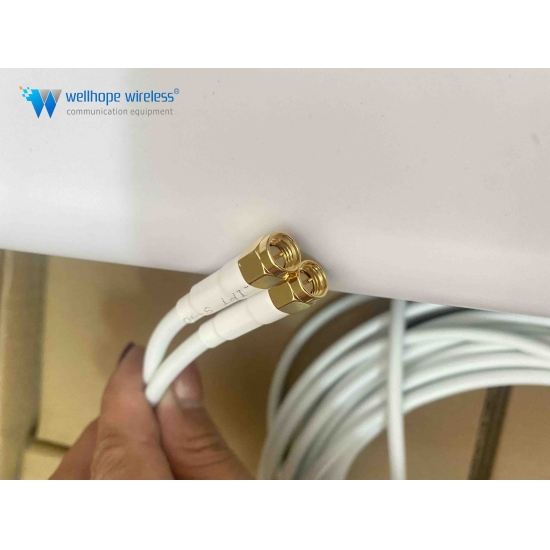

Connector Type：2xSMA-male

cable：RG58 ;1200cmX2

Lightning Protection：DC Ground

Working Temperature：-40℃~﹢65℃

Antenna Weight：750g

Size：265x175x60mm

Mounting method：Patch/PoleΦ35~55mm/indoor/outdoot both

Waterproof ： IP65

Rated Wind Velocity：210km/h

Antenna Cover Material：ABS

colour：white
