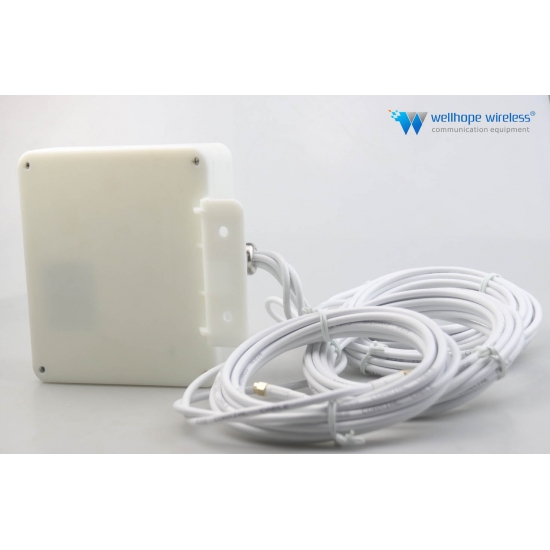

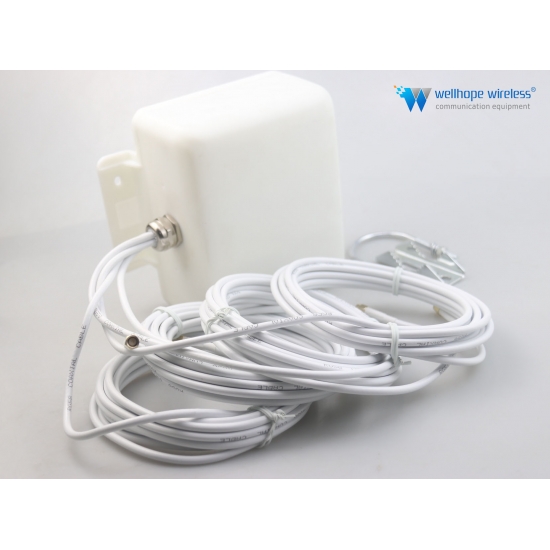

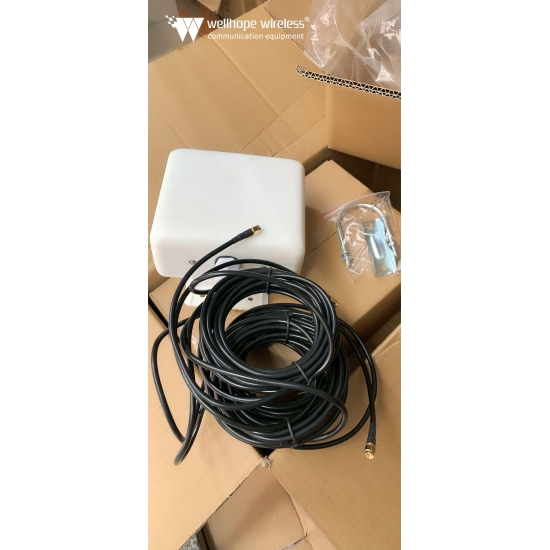

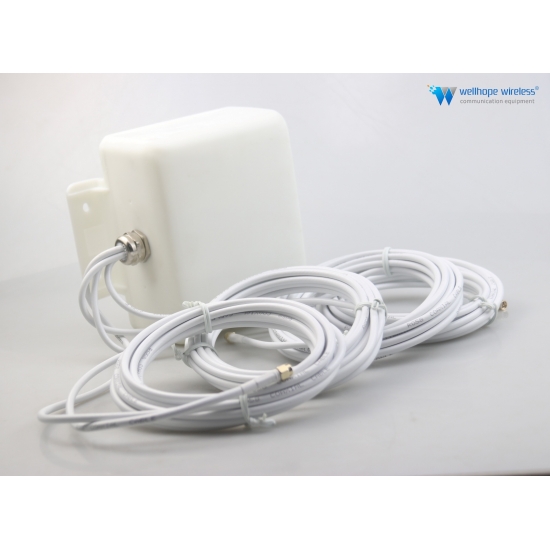

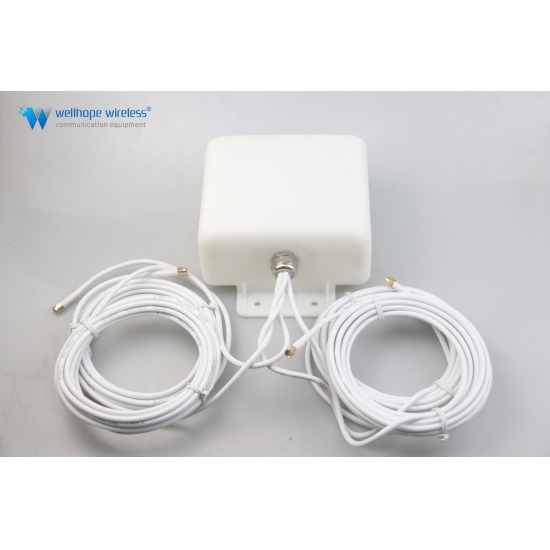

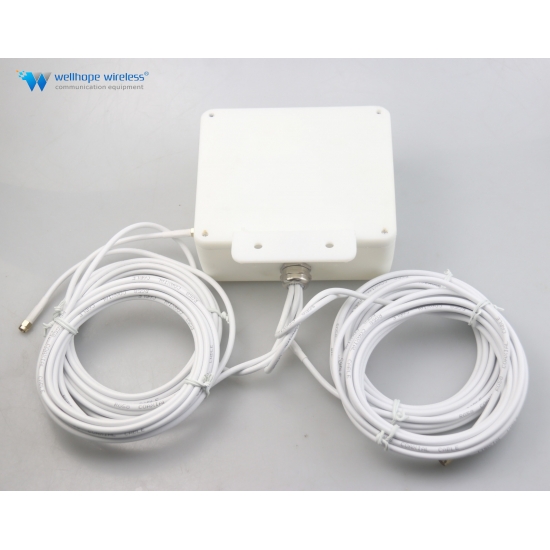

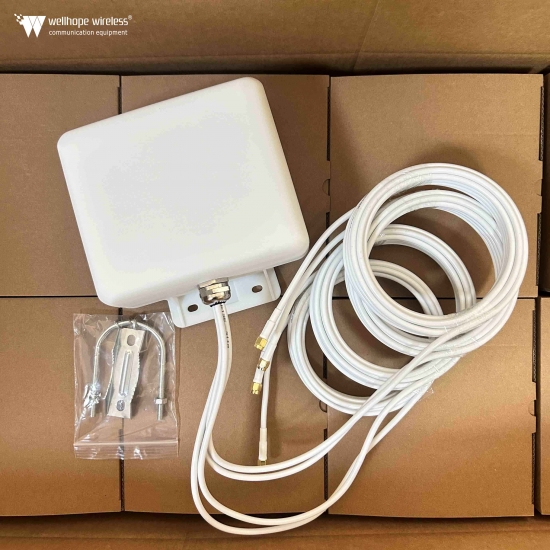

600-6000MHz 4x4 MIMO Cellular 5G LTE Mimo patch antenna

600-6000MHz 4x4 MIMO Cellular 5G LTE Mimo patch antenna

WH-5G-MM8x4

IP66 waterproof 4G antenna 5G 8dbi OMNI ANTENNA individual box package

In airport environments, 5G antennas like WH-5G-PX4 and WH-5G-MM8x4 ensure robust signal transfer. Their multi-frequency support (e.g., 698–6000MHz) adapts to complex spaces—terminals, runways—resisting interference. High-gain designs (8dBi for WH-5G-MM8x4) extend transfer distance, covering vast areas. For people, stable 5G signals enable travelers to use mobile services smoothly, while staff benefit from efficient communication for operations. Additionally, reliable connectivity powers airport IoT systems (e.g., baggage tracking, navigation), enhancing overall convenience.

brand:
whwireless
item no.:

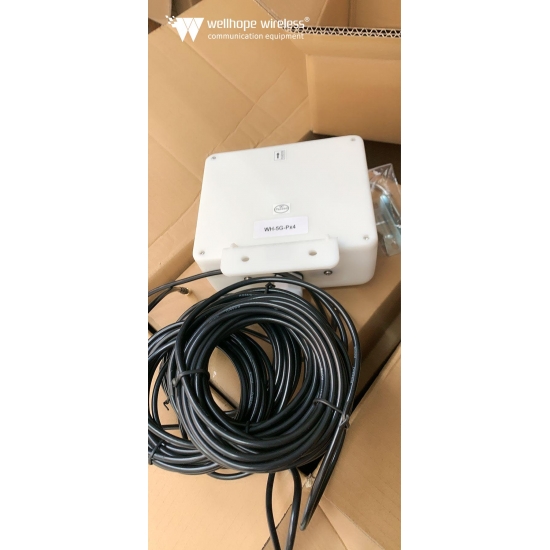

WH-5G-PX4
payment:
T/T
product origin:
china
color:
white
lead time：
7working day

Inquiry now

Frequency range:698/960/1710/2700/3500/3800/4400/4900MHz/6000MHz

Bandwidth:262/750/990/300/600/500

VSWR:≤1.6/≤1.5/≤1.4≤/1.5/≤1.5/≤1.5

Gain:3/3/5/4.5/5dbi

Pattern:Omni directional

Horizontal beamwidth°:360°

Vertical beamwidth°:50±10°

Input Impedance -Ω:50

Polarization:vertical

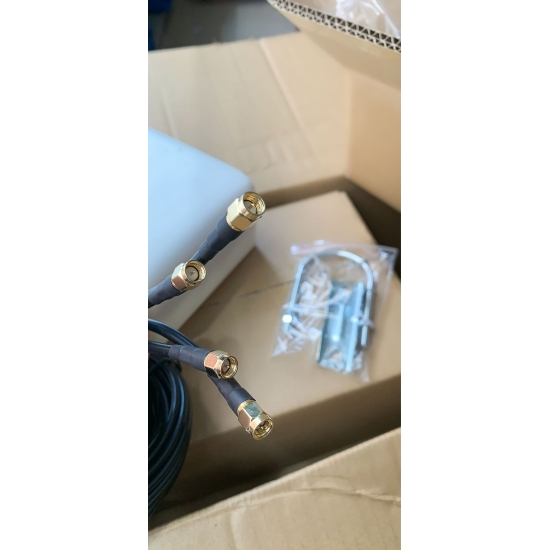

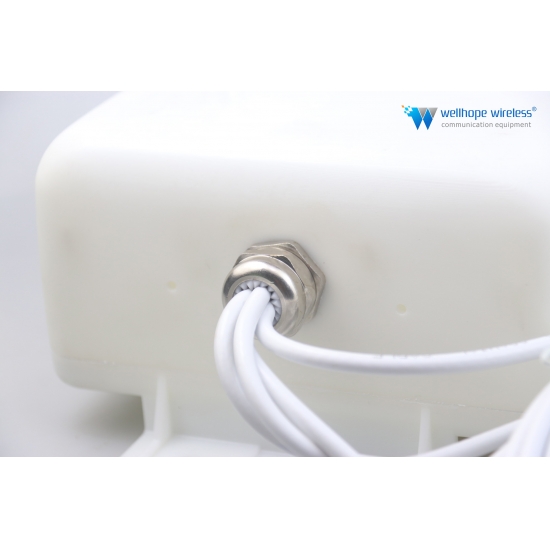

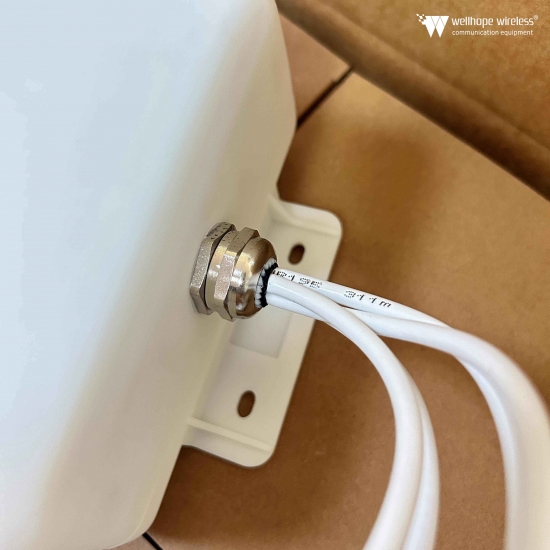

Connector:N femaleX4

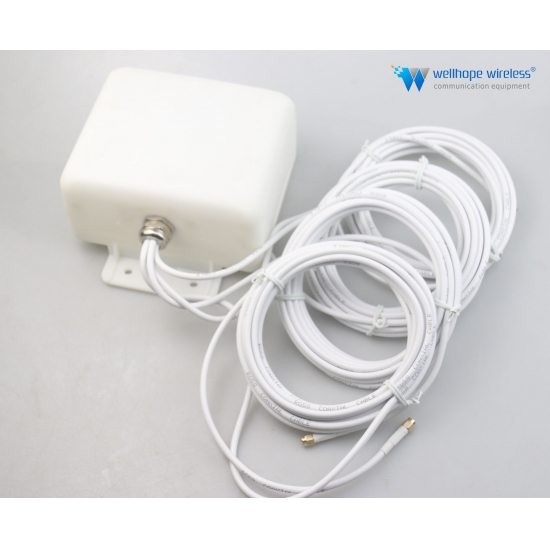

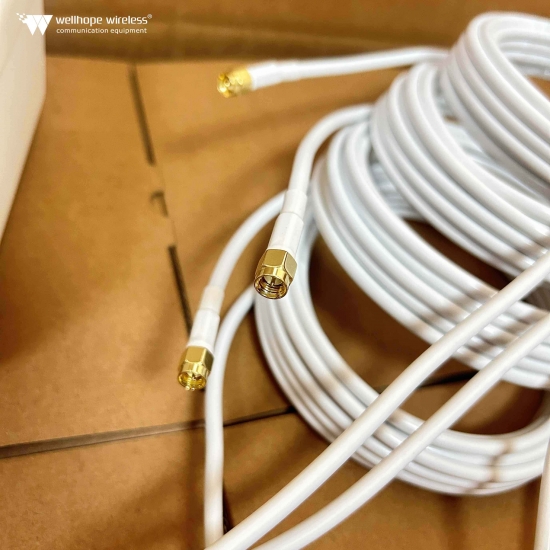

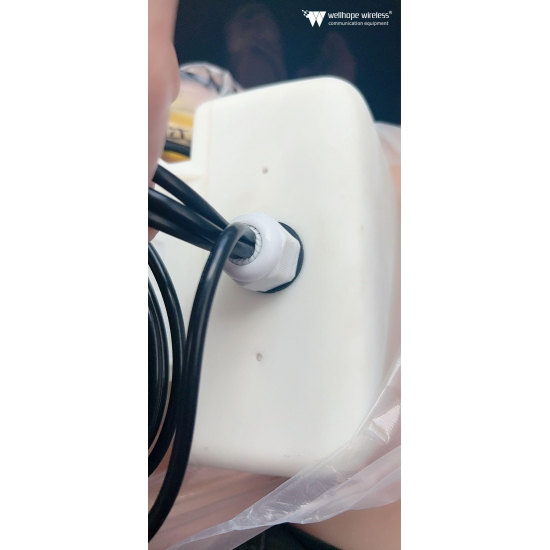

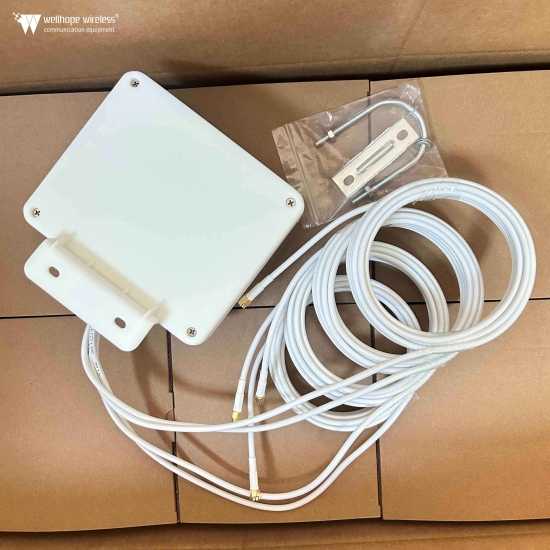

Cable type:RG58U;500cmX4

Waterproof:IP65

dimension:165X165X95(mm)

Raflector material :alunimium

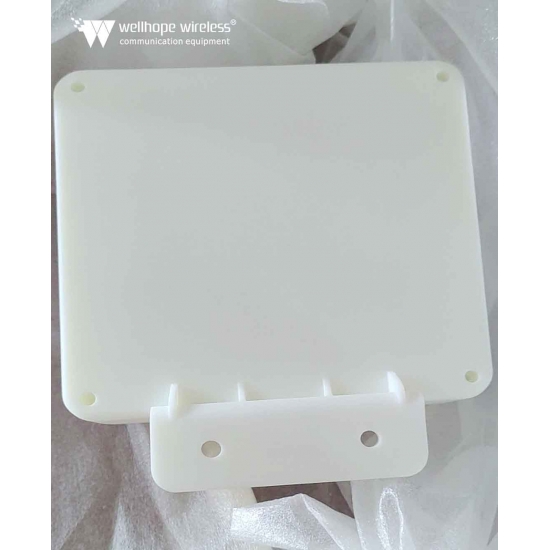

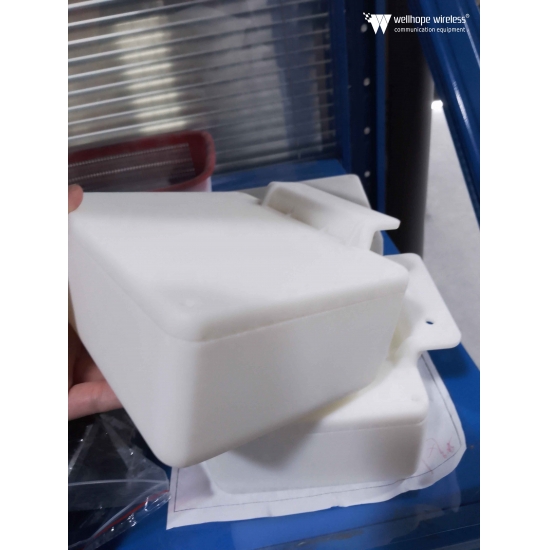

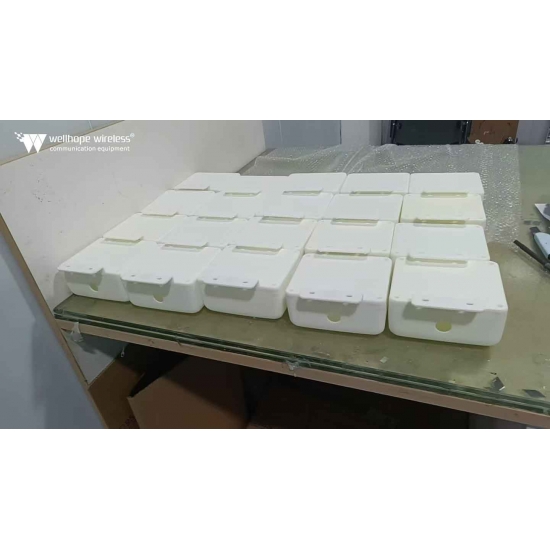

Radome:ABS

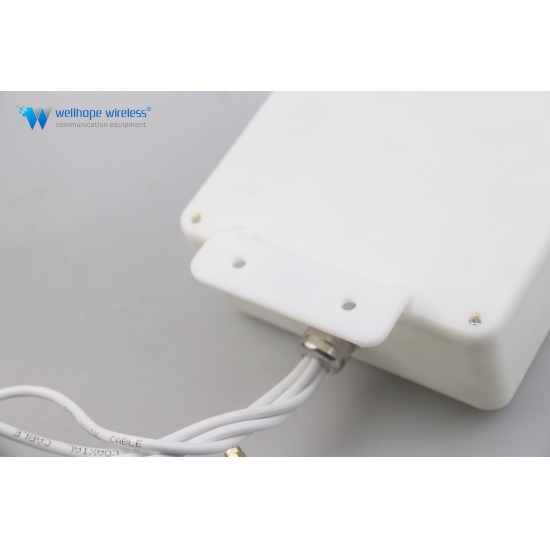

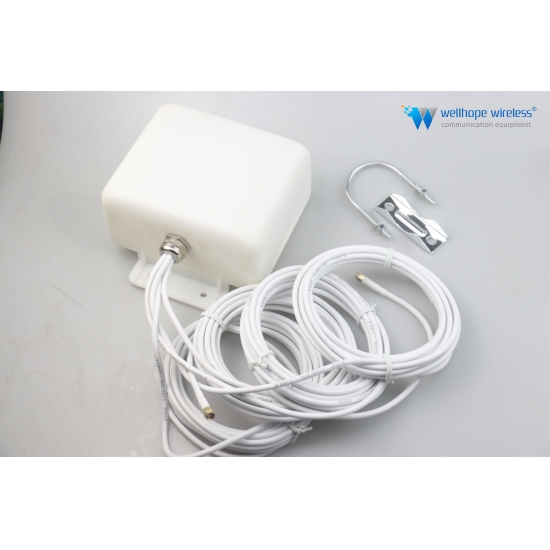

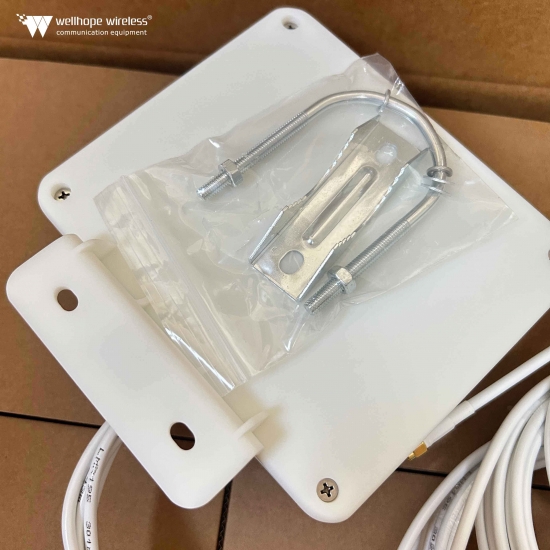

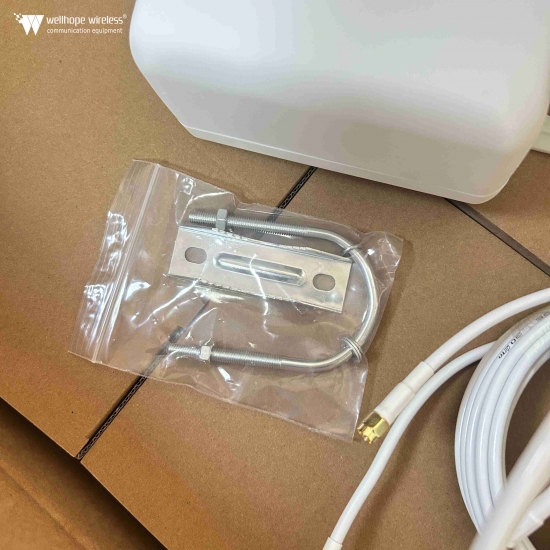

Install method:U bolt/wall mount

Operation Temperature℃:-40-70

Storage Temperture℃:-50-80

Weight(kg):2.5

Hot Tags :

Next:
5G 698-3800MHz 8dBi IM3(dBm)≤107dBm(2@33dBm) patch Antenna,
