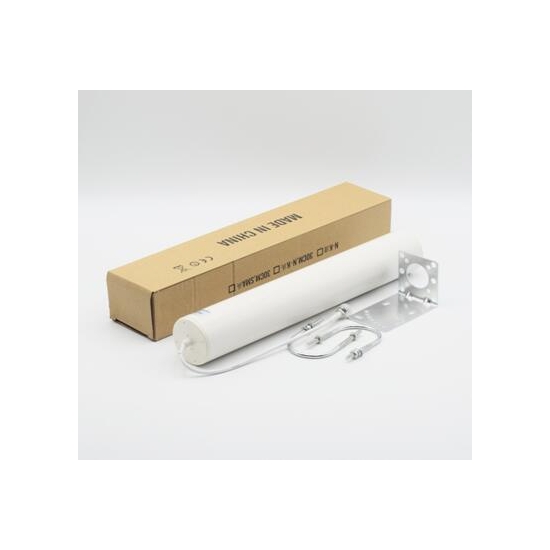

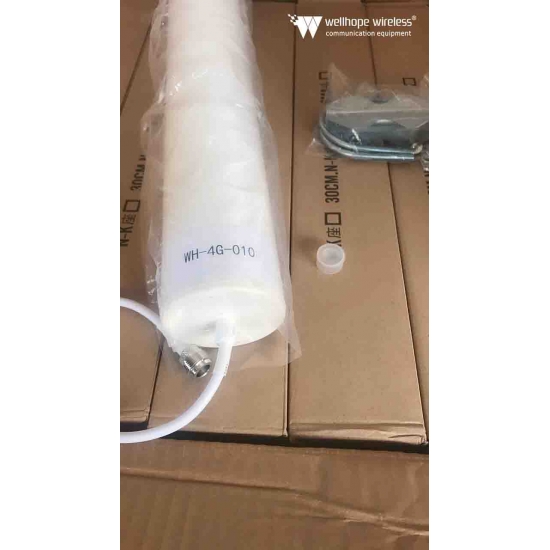

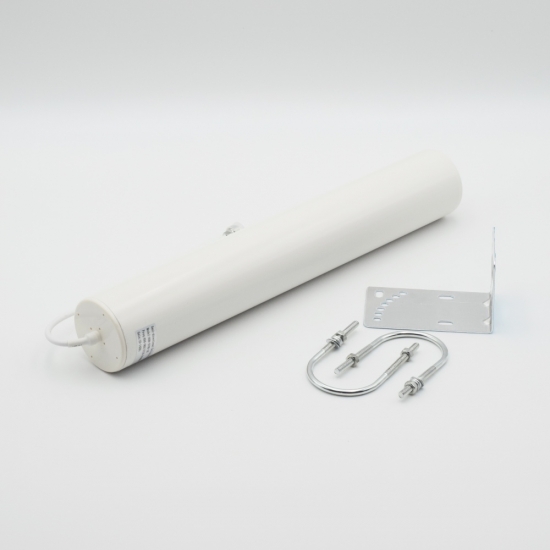

WH-4G-010 is a wideband 4G LTE antenna that covers cellular frequencies in the range from 700 to 2700 MHz. In additional to 3G and 4G wireless applications, the antenna covers IoT technologies such as LoRa, Sigfox, and others using unlicensed bands such as 868 and 915 MHz. ISM 2.4GHz WiFi and Bluetooth 3.0 are also fully supported.
The model has a 10dBi gain on the lower 698 to 960 MHz range and 10dBi gain on the upper 1710 to 2700 MHz range. These peak gain figures are ideal for maintaining a near-spherical radiation pattern, very important for use in IoT, machine telemetry, and metering applications.
brand:
whwirelessitem no.:
WH-4G-010payment:
T/Tproduct origin:
chinacolor:
whitelead time:
5working dayFreqRange:700-960/1710-2700MHz
Gain:10dBi
Half-power angle:H 360°/ E85°
Vertical Beamwidth:70±3º
VSWR:≤1.5
ovality:≤2dB
Impedance:50Ω
Polarization:vertical
Max. Power:50W
Lightning Protection:DC ground
Connector:N female/male
Dimension mm:¢63X410 mm
Weight kg:0.65kg
Radome Color:white
Operational Humidity:< 95%
Cable type 30CM RG58
Rated Wind Velocity 210 km/h
Radome material:ABS
Operating temperature:-40~65º
waterproof level:IP67
