WH-SMA-ST


SMA PCB connector
WH-SMA-ST WH-SMA-ST WH-SMA-ST WH-SMA-ST WH-SMA-ST WH-SMA-ST WH-SMA-ST WH-SMA-ST

WH-SMA-ST

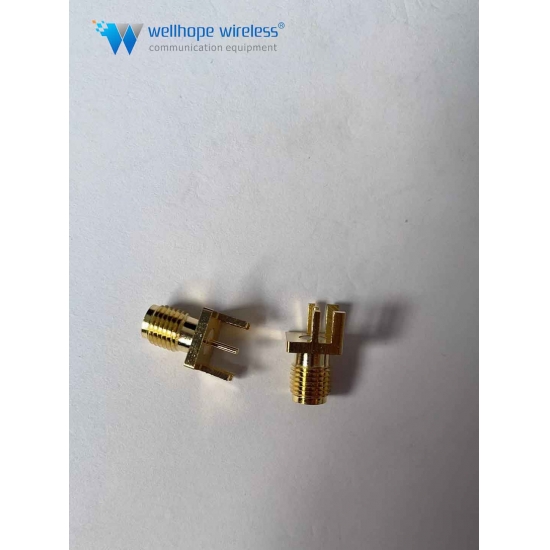

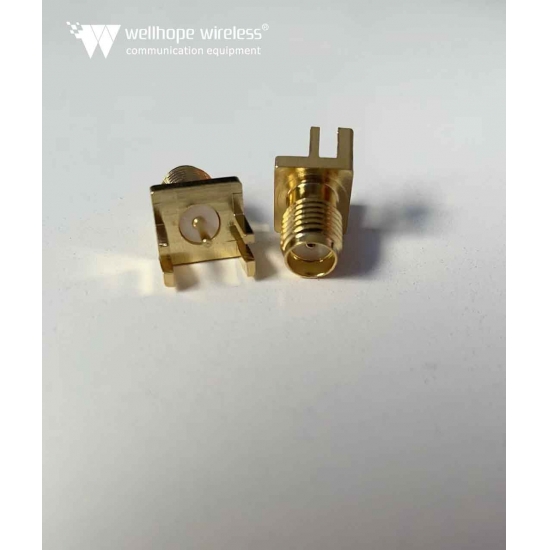

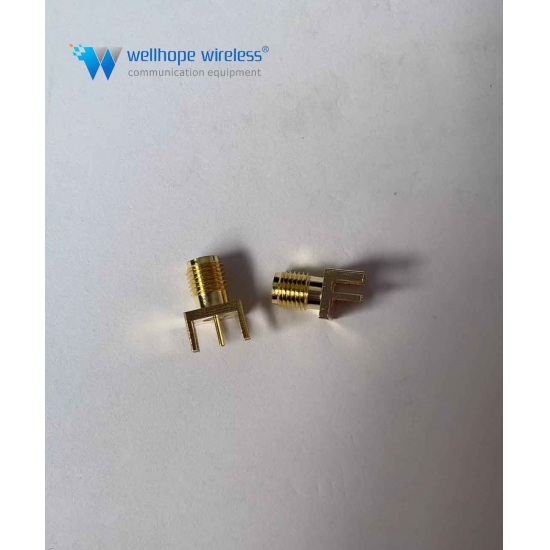

SMA straight female connector for PCB

  • brand:

    whwireless

  • item no.:

    WH-SMA-ST

  • payment:

    T/T

  • product origin:

    china

  • color:

    gold

  • lead time：

    3 working day
Inquiry now

Frequency Range：0-6000MHz

Characteristic impedance:50 Ohm

Working voltage:335 VRMS

Dielectric With standing Voltage:1000 VRMS

Conntact Resistance:inner:3 milliohms MAX

                             Outer:2 milliohms MAX

Insertioin loss: ≤0.15 dB/6GHz

Insulation resistance:1000 megohms min



Body:brass

Female pin:phosphor bronze

Insulators:PTFE

Working Temperature：-55℃~﹢155℃
