ultra wideband antenna 0.4-7GHz

0.6-10GHz UWB antenna0.6-10GHz UWB antenna

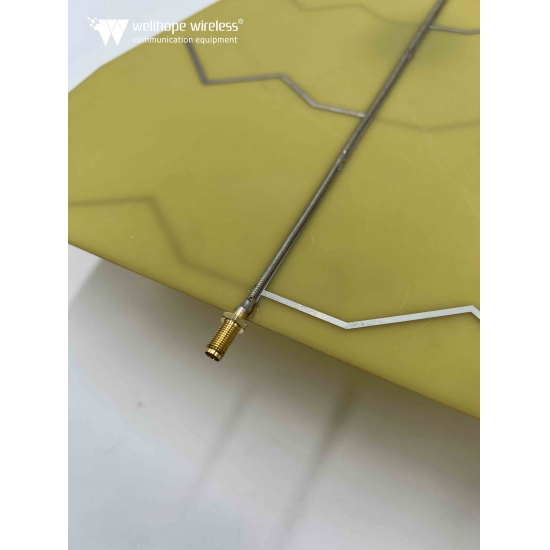

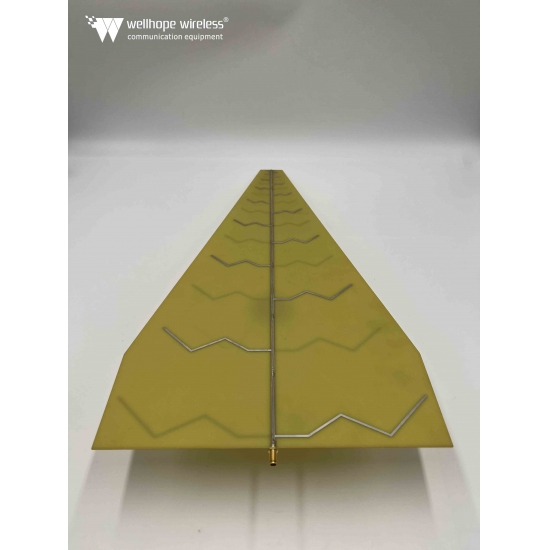

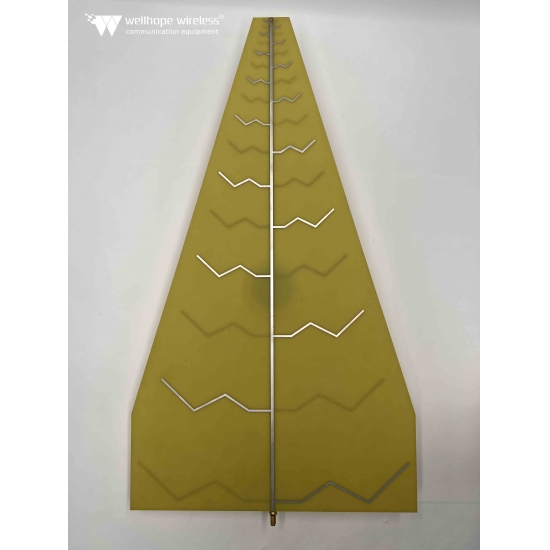

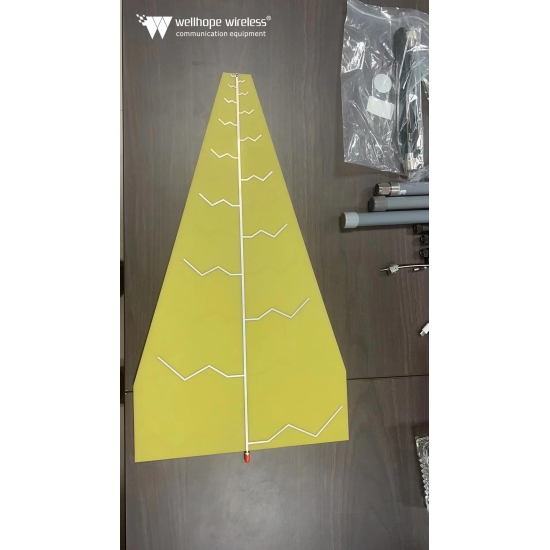

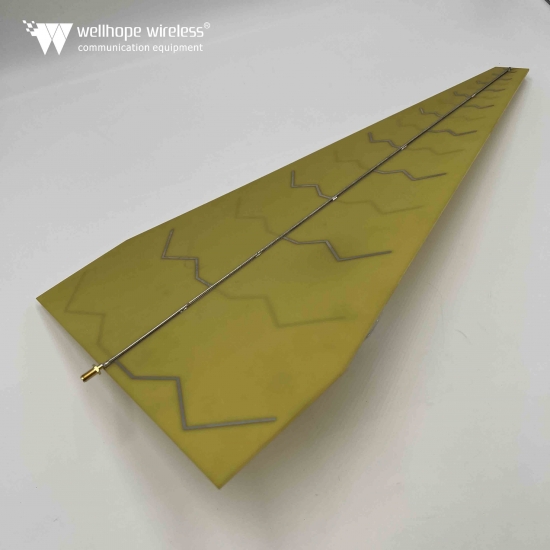

The WH-6G-D12 is a wireless wideband antenna designed for Ultra-Wideband (UWB) applications. It operates within the frequency range of 0.4 to 7 GHz, making it suitable for various wireless communication systems and applications. The antenna is known for its high gain of 8dBi, which enhances the signal reception and transmission capabilities.


Due to its wideband capabilities, the WH-6G-D8 is capable of handling a broad range of frequencies, making it versatile for use in different wireless technologies and frequency bands. It is a UWB antenna, meaning it can efficiently transmit and receive signals over a large bandwidth, making it ideal for high-speed data transfer and communication over short distances.

Overall, the WH-6G-D8 UWB antenna is a high-gain, wideband solution for various wireless applications, making it suitable for modern wireless communication needs.


  • brand:

    whwireless
  • item no.:

    WH-6G-D12
  • payment:

    T/T,Alipay,WeChat Pay,Paypal
  • product origin:

    china
  • lead time:

    6 working day

Frequency:400/600-960MHz/2700-3300MHz/4000/6000/7000MHz

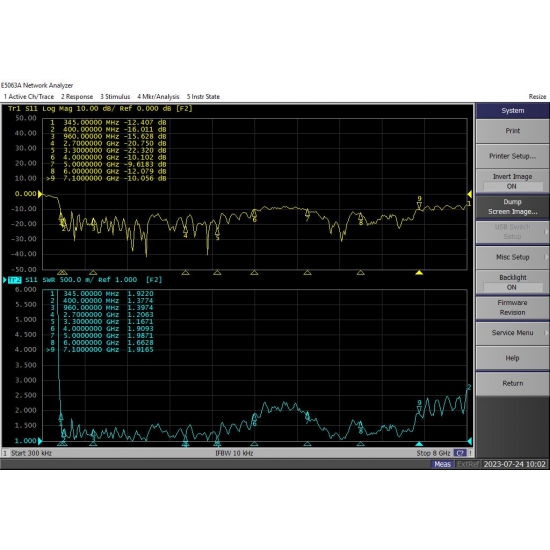

VSWR:<1.38/<1.4/<1.18

Gain:6dBi/7dBi/8dBi

Horizontal Beamwidth :6-90°

Vertical Beamwidth :15-160°

F/B:6-28dB

Impedance:50 Ohm

Polarization:vertical

Max Power:50W

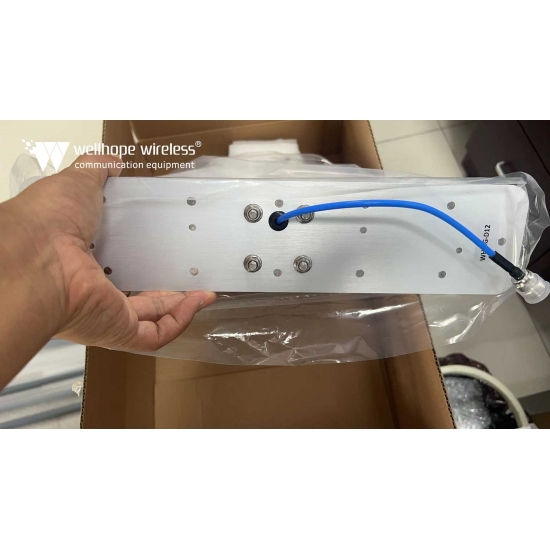

Connector Type:N female

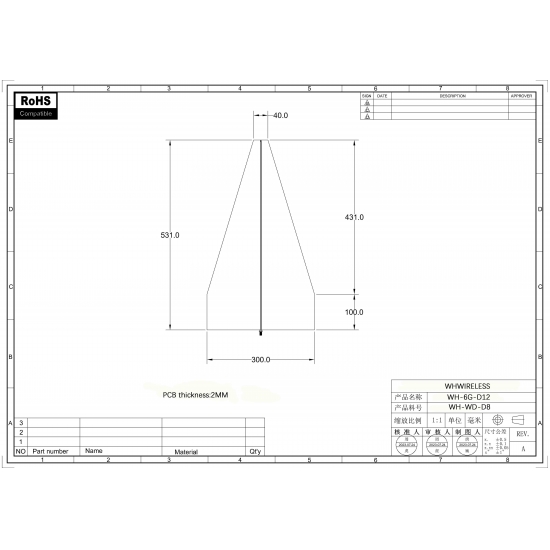

Dimension with housing:600X350mm

Weight:0.7Kg

Operation Temperature:- 45˚C ~ +85 ˚C

Storage Temperature:- 45˚C ~ +85 ˚C

Operation Humidity:<95%

Rated Wind Velocity:36.9m/s

Lighting Protection:DC ground
