Spring Antenna 868MHz Antenna with board for mounting

Spring Antenna 868MHz Antenna with board for mounting

868MHz antenna IOT antenna RoHS

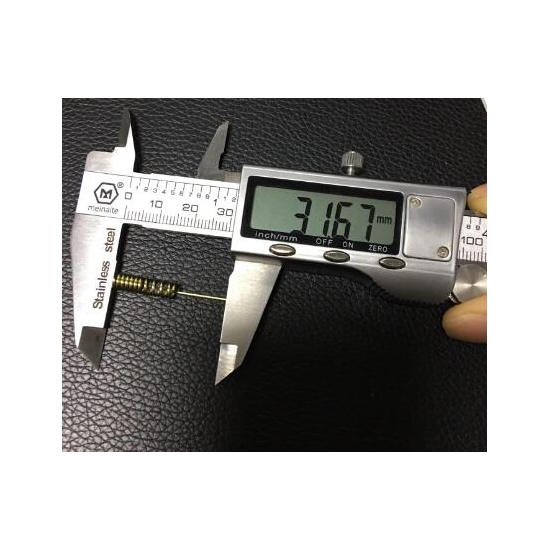

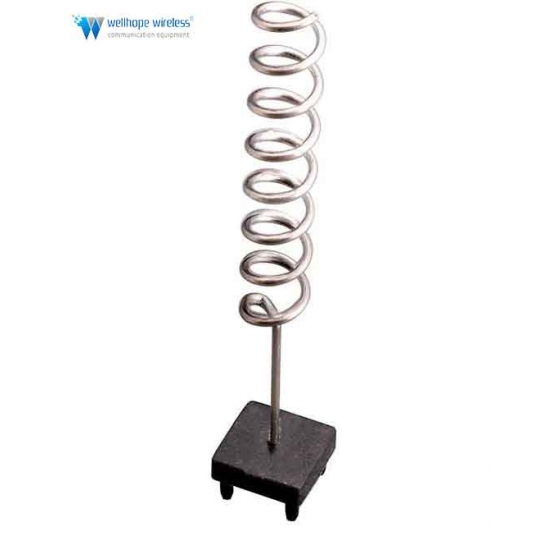

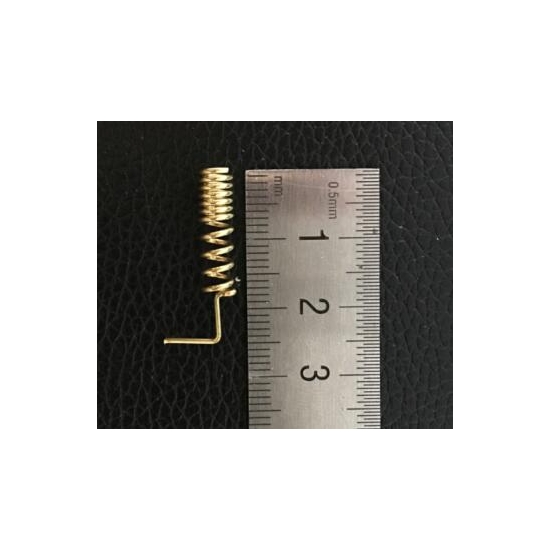

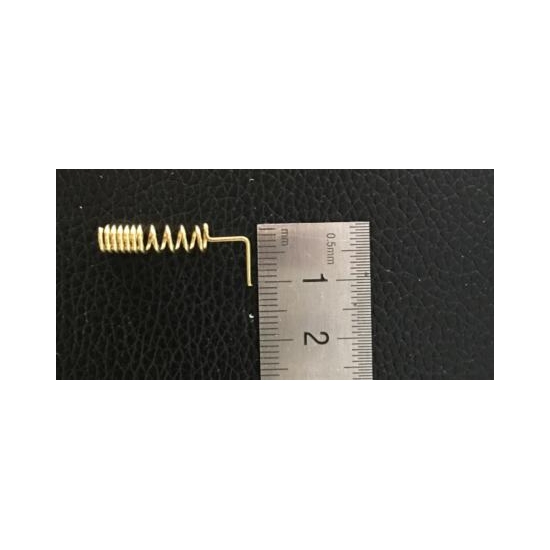

WH-868-BSP2.15 spring antenna for wireless communication at the 868MHz frequency range. The antenna is made of copper-clad wire, which makes it easy to solder, and has a length of 31.6mm. It offers 2.15dBi of gain and has a 50Ω impedance, making it compatible with most 850~950MHz wireless receiver/transmitter devices.

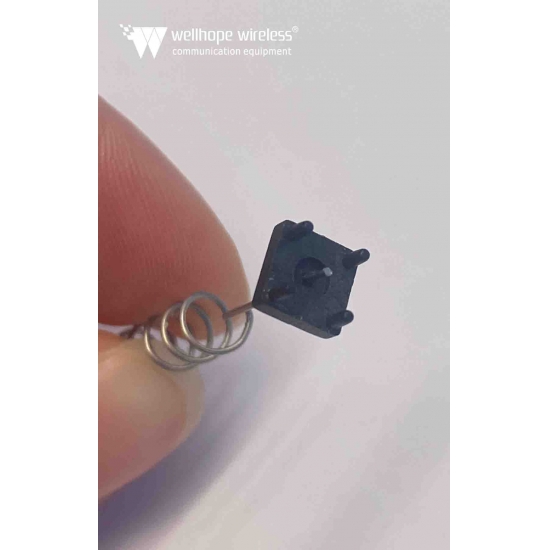

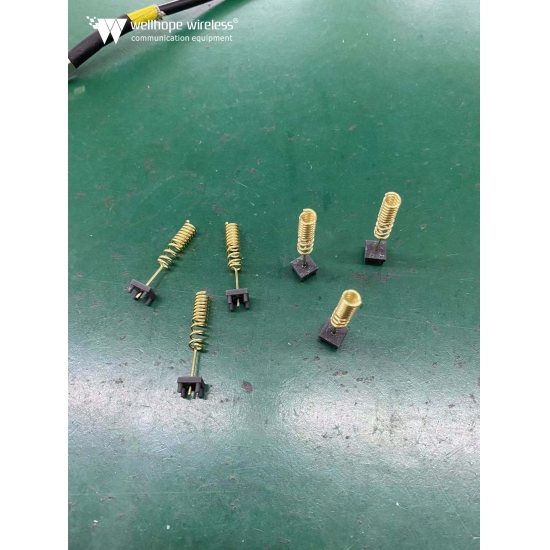

the antenna base come with board,that can be easily and consistently mounted onto the circuit board of a device, which can be important for mass production and manufacturing processes. The combination of the antenna's other features and its easy-to-mount connector-style base make it a reliable and effective choice for wireless communication applications.

brand:
whwireless
item no.:
WH-868-BSP2.15
payment:
T/T,Alipay,WeChat Pay,Paypal
product origin:
china
color:
gold
lead time：
4 working day

Inquiry now WhatsApp

Frequency:868MHz
VSWR:≤2.0
Gain:2.15dBi
Polarization Type:Vertical
Rated Power:50w
Input Impedance:50Ω

mounting; solder

Board material:ABS

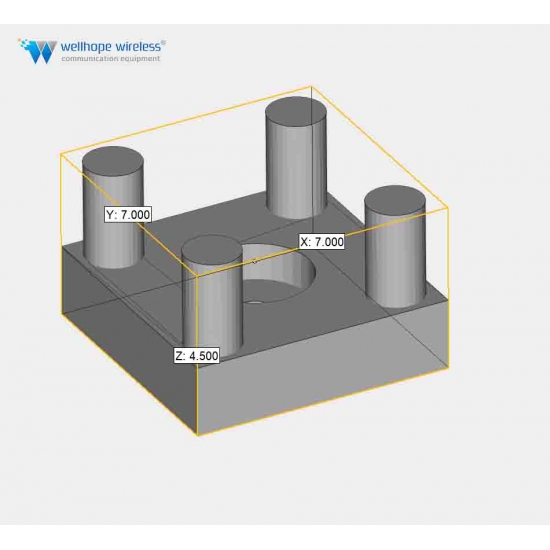

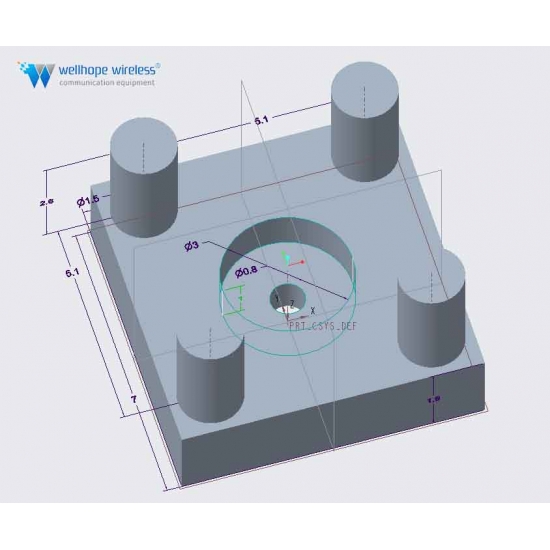

Board dimension:5.1x7mm

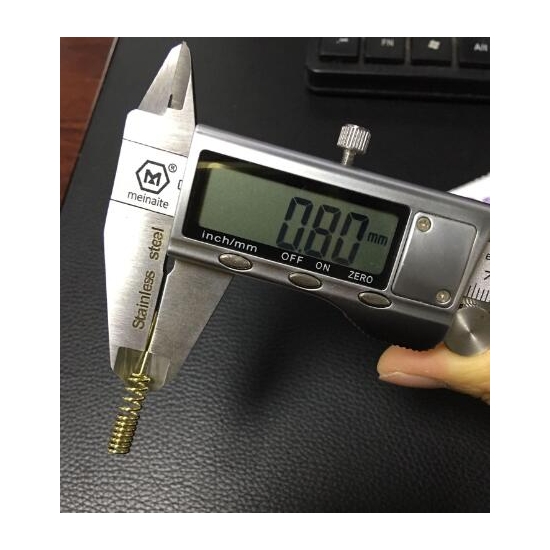

Antenna Dimensions;Φ0.8X31.6mm
Weight:2g
