Modern integrated GSM 3G antenna

IP66 waterproof outdoor antenna ROHS

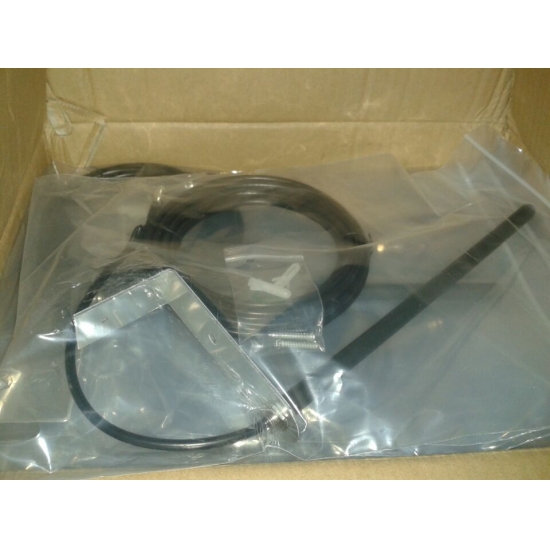

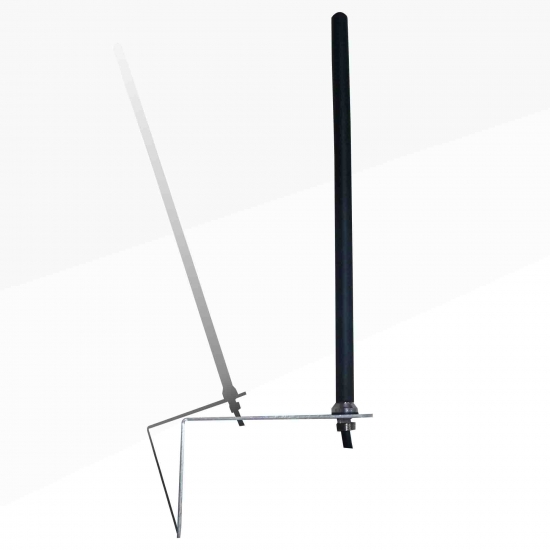

This is multiband 3G / 4G omnidirectional LTE M2M Gateways antenna has a gain of 3dBi and is designed for the frequency ranges of 698-960MHz&1710-1880MHz&1850-1990MHz&2100/2700MHz. The multi rod antenna is supplied with a L shape bracket and 3m antenna cable with SMA male. The multi omni antenna can be connected to any 4G / 3G / 2G device (surf stick, gateway, MiFi router) with SMA male or FME customized

brand:
whwireless
item no.:
WH-G&3
payment:
T/T
product origin:
china
color:
black

Inquiry now WhatsApp

Frequency Range:825-960&1710-1880MHz&1850-1990MHz&2100MHz
VSWR:≤2
Gain:3dBi
Polarization Type:Vertical
Rated Power:50w
Input Impedance:50Ω

Connector Type:FME Female
Cable:RG58;5meter
Dimensions:Φ12×270 mm
Work Temperature:-40—+70-℃
Mounting kits:including

MOQ:10PCS

Delivery time:5working day

Payment term:T/T

Package:individual box

Waterproof:IP66

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA
