618/700-960/1710/1800/2700/4800/6000MHz;5G 4G FPC antenna

5G 4G FPC mimo antenna 5G 4G FPC mimo antenna

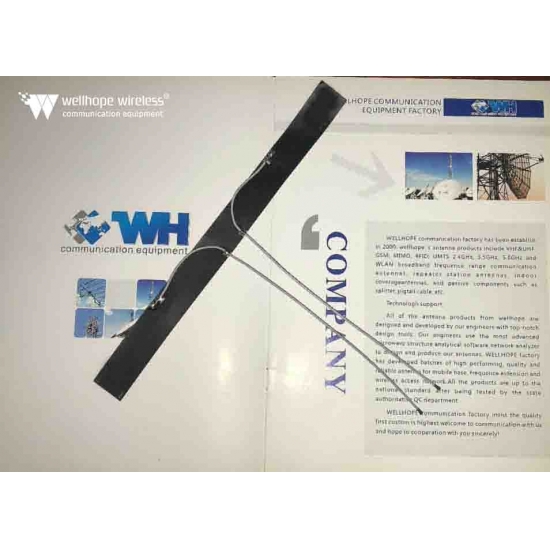

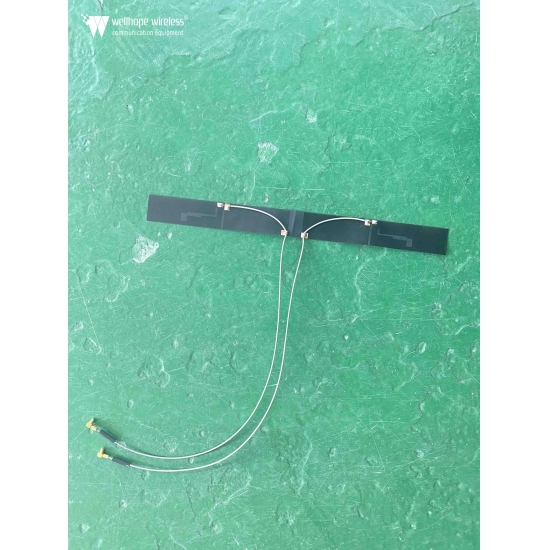

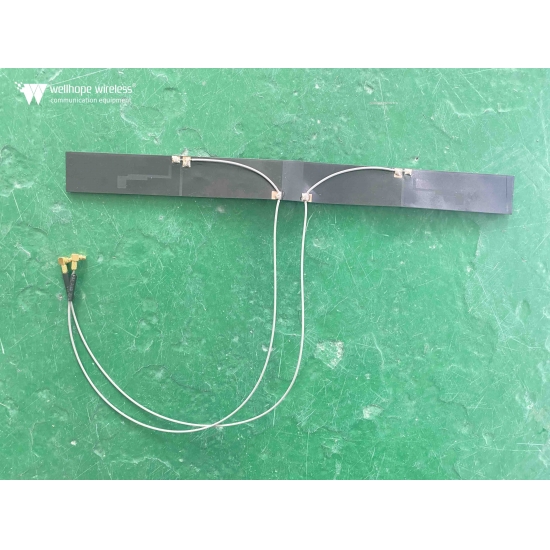

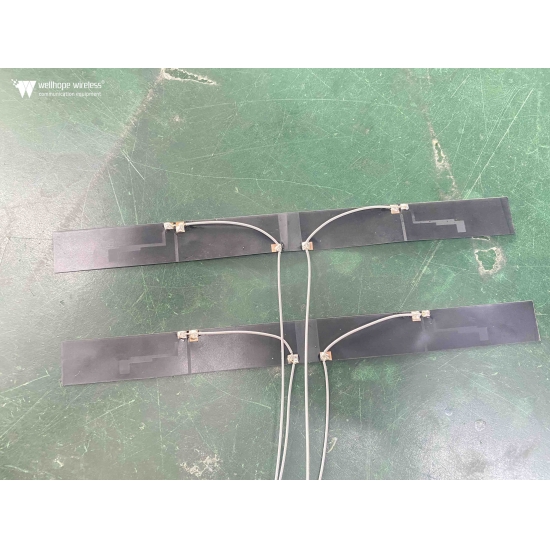

This FPC 5G 4G mimo antenna WH-5G-FPC6x2 is terminal FPC antenna covering 618/700-960/1710/1800/2700/4800/6000MHz ( 5G 4G 3G), Designed for terminals and routers, the antenna offers SMA or U.FL connector for flexible positioning and stick on metal or window smooth surface.

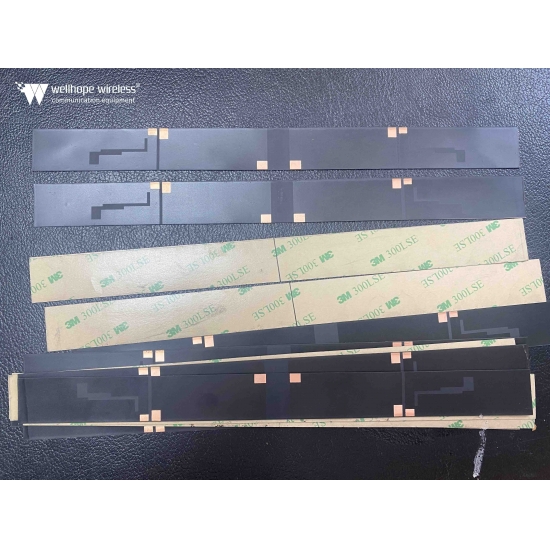

easy to mounting3M adhesive

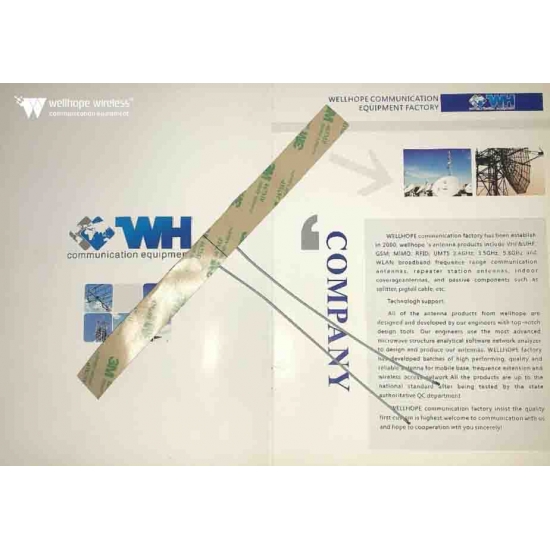

Easy install 3M adhesive mounting.

  • brand:

    whwireless
  • item no.:

    WH-5G-FPC6x2
  • payment:

    T/T
  • product origin:

    china
  • color:

    black
  • lead time:

    2 working day
Inquiry now
Frequency:618/700-960/1710/1800/2700/4800/6000MHz
VSWR:≤2
Gain:6dBi X2
Polarization Type:Omni-directional
Rated Power:1w
Input Impedance:50Ω

Cable length:15cm
Connector Type :U.FLX2 or customized

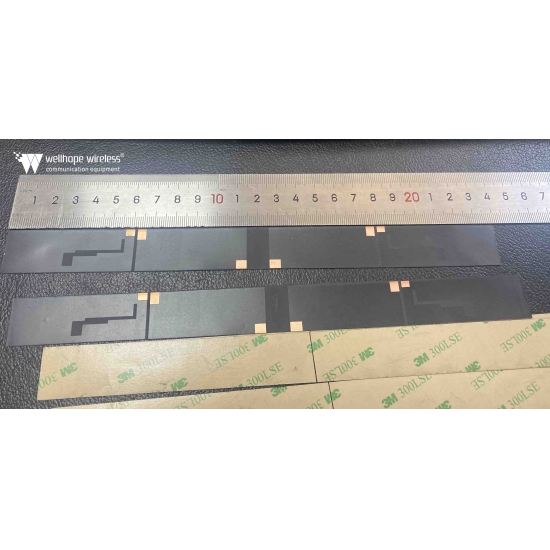

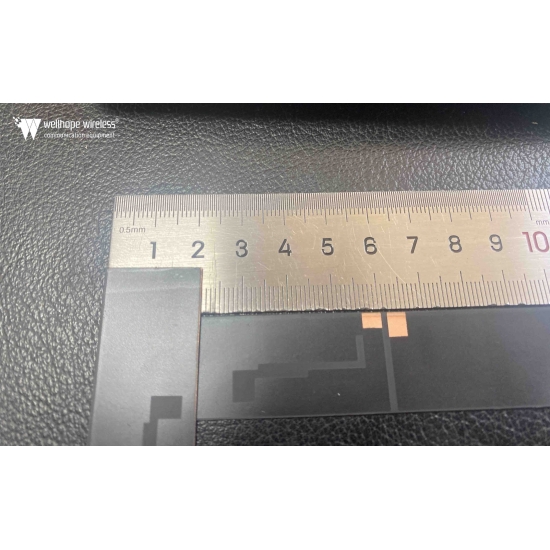

Dimensions:240mmX21mmX0.15mm(mm)
Antenna material :FPC
Operation Temperature:-10 ~ +70 ˚C

Send a Message

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
