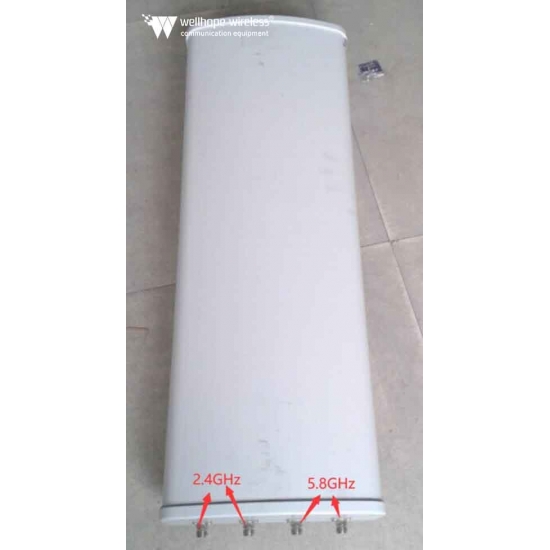

Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel


wlan panel antenna 16dBi dual panel antenna WH-2.4&5.8GHz-D16X4
Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel

Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel

  • 16dBi N female x 4;MIMO wlan panel antenna 16dBi x4
    • Wireless Tank Telemetry ; wireless remote module Wireless video/audio senders/receiver; wireless RoIP

  • brand:

    whwireless

  • item no.:

    WH-2.4&5.8GHz-D16X4

  • payment:

    T/T

  • product origin:

    china

  • color:

    white

  • lead time：

    7working day
Inquiry now

Frequency Range-MHz;2400-2483/5150-5850

Gain-dBi;14x2/16x2

Horizontal Beamwidth-°;120º/90º

Vertical Beamwidth-°;15/10º

F/B Ratio-dB;>25

VSWR;≤1.5

Polarization;Vertical

Nominal Impedance-Ω;50

Maximum Power-W;100

Dimcnsions-mm;500x170x50

Weight-kg;2.0

Ratcd Wind Velocity-m/s;60

Cable type;SFF-50-3

Cable length; 4X1meter

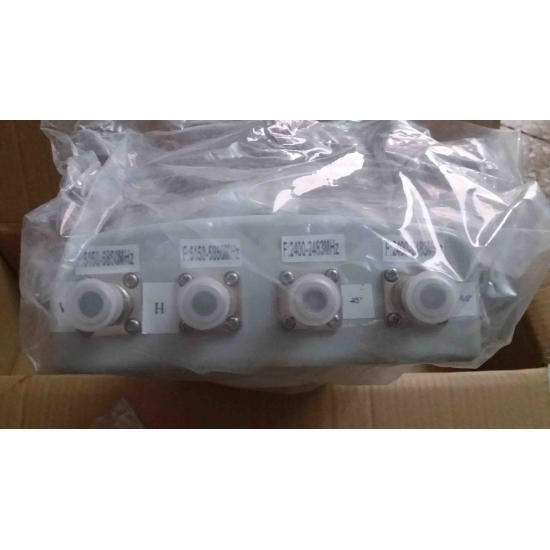

Connector;N female x 4

Mounting Mast Diameter-mm;Φ35~50


Waterproof IP65

MOQ:2PCS

SPQ:1PCS/box

Ddelivery time:5working day

Payment term:T/T

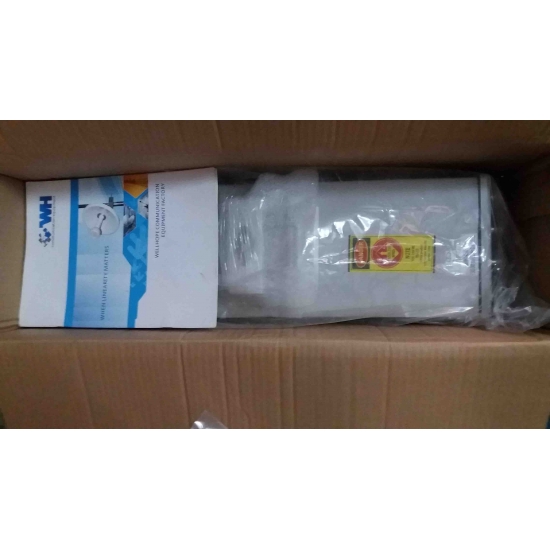

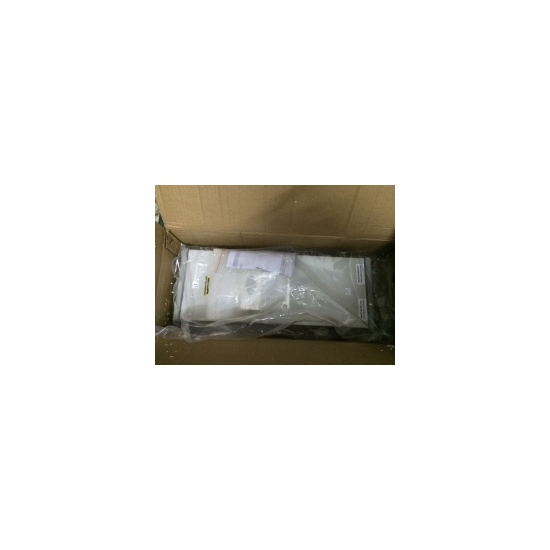

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA
