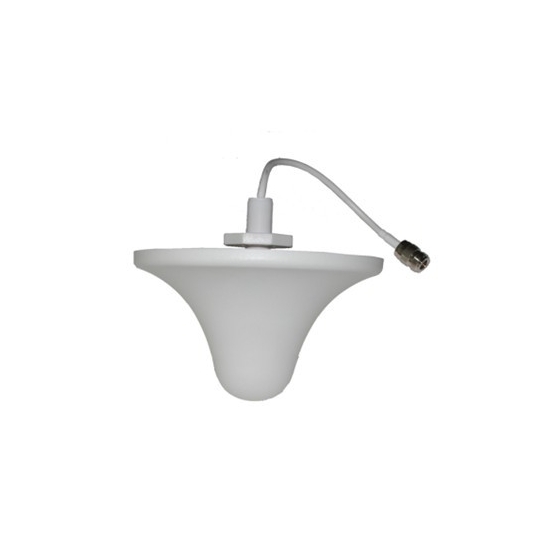

WiFi access points dual band ceiling antenna

  • 5dBi
  • N female
  • Φ190×90mm for wifi indoor covery
  • brand:

    whwireless
  • item no.:

    WH-2.4&5.8-C5
Inquiry now

Frequency:2400-2483MHz;5150-5850MHz

VSWR:≤1.5

Gain:4/5dbi

Polarization Type:Vertical

Horizontal Beamwidth:360°

Vertial Beamwidth:60°/30°

Rated  Power:50w

Input  Impedance:50Ω


Connector Type:N straight female

Cable type:RG174

Length:2.5 (M)

waterproof level:IP65

Install the way:Adstorption

Dimensions:Φ166×90mm

Weight:150g


indoor point-to-point wireless bridge

WH-2.4&5.8-C5
