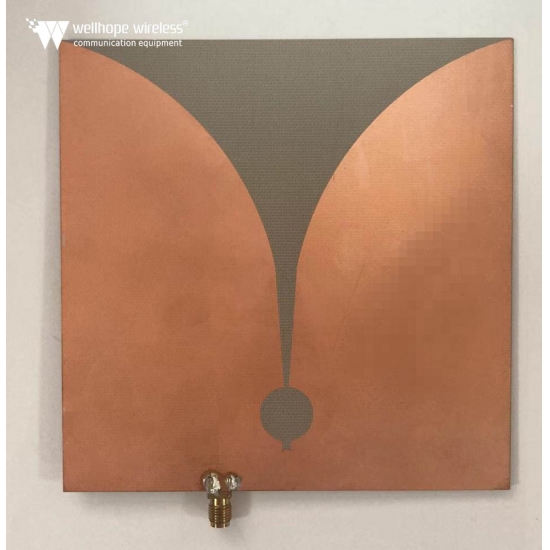

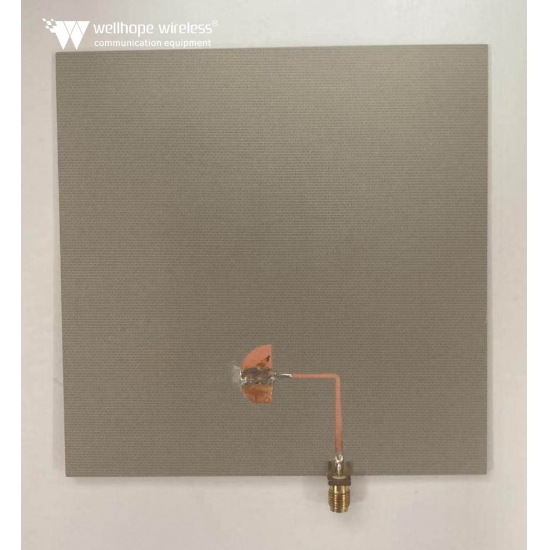

The WH-UWB-P9 is an innovative wireless ultra-wideband (UWB) antenna integrated into a compact PCB with dimensions of 120mm x 120mm x 1mm. It operates across the microwave frequency range from 0.6GHz to 10GHz, making it ideal for various wireless communication and sensing applications. The antenna's design incorporates a microstrip configuration to achieve broad radiation patterns, high gain, and efficiency. It ensures low Voltage Standing Wave Ratio (VSWR) and impedance matching for optimized signal transfer. The WH-UWB-P9 is manufactured using high-frequency laminates and precision techniques like laser drilling to minimize signal loss and maintain superior performance. The antenna's compact size and wideband capabilities make it suitable for integration into a diverse range of wireless devices and systems, providing seamless connectivity and enhanced data transmission in a multitude of environments.
brand:
whwirelessitem no.:
WH-UWB-P9payment:
T/Tproduct origin:
chinalead time:
6 working dayFrequency:600-960MHz/1710-8500MHz/8500-10000MHz

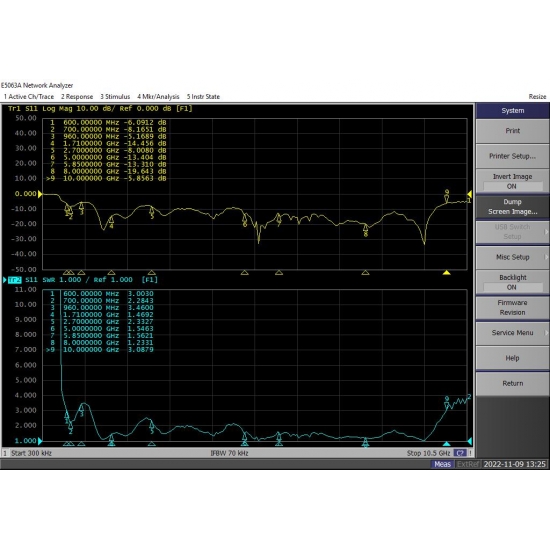

VSWR:<4.0 / <2.5:<3.0
Peak Gain:1.6dBi / 9dBi:7.6dBi
Impedance:50 Ohm
Polarization:vertical
Horizontal Beamwidth:95°- 115°/ 20°- 360°:25°- 75°
Vertical Beamwidth:93°- 150°/ 50°- 180°:60°- 90°
Max Power:50W

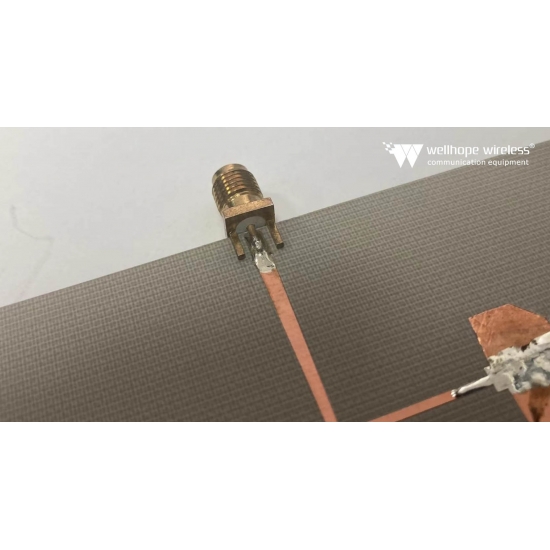

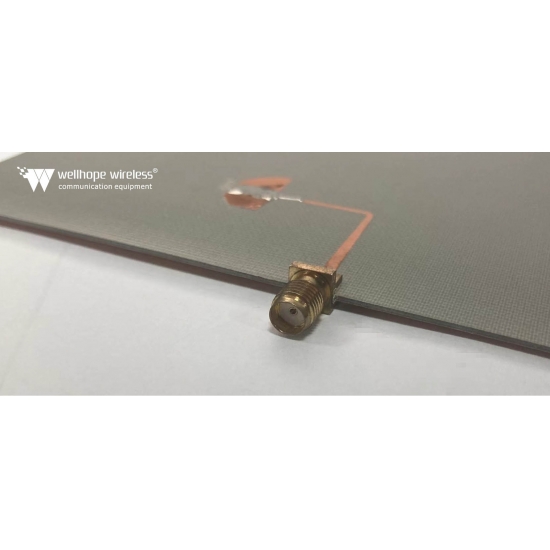

Connector Type:SMA-F

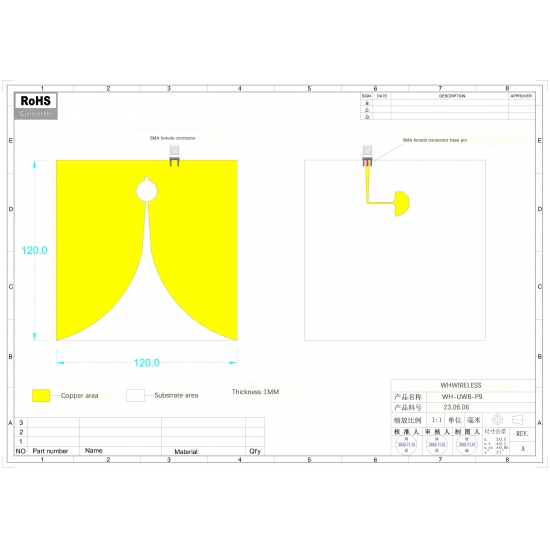

Dimension:120X120X1mm
Weight:0.035Kg
Operation Temperature:- 45˚C ~ +85 ˚C
Storage Temperature:- 45˚C ~ +85 ˚C
Operation Humidity:<95%
Rated Wind Velocity:36.9m/s
Lighting Protection:DC ground
MOQ:2PCS
SPQ:100PCS/box
Ddelivery time:5working day
Payment term:T/T
Package:plastic bag and box
Paymeter method:Paypal;Wire Transfer
Customized according client require detail
Shiping way:DHL Fedex UPS
