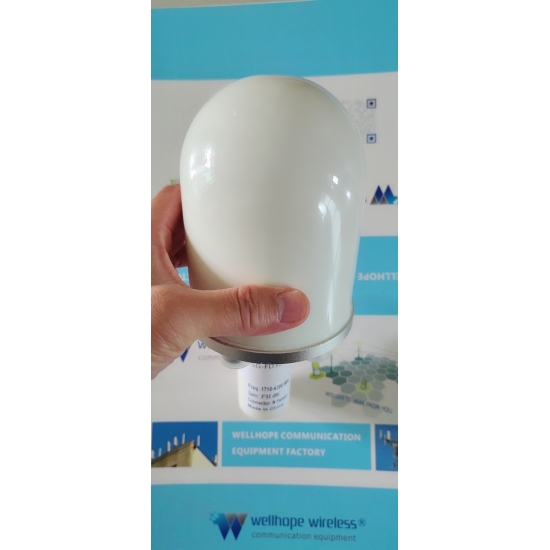

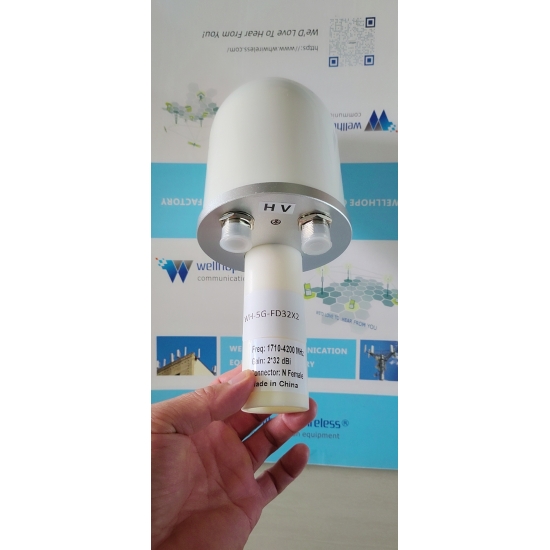

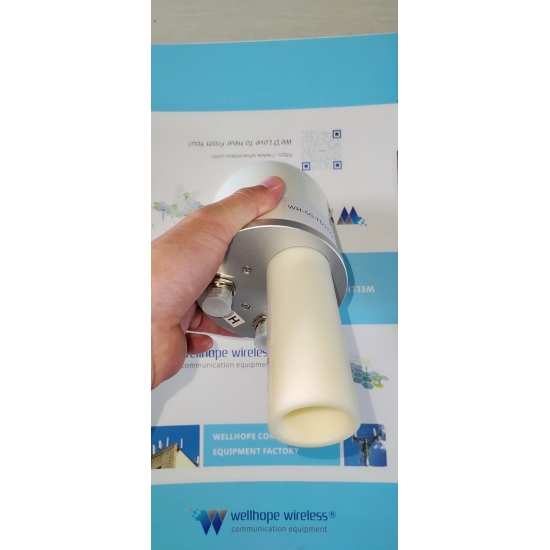

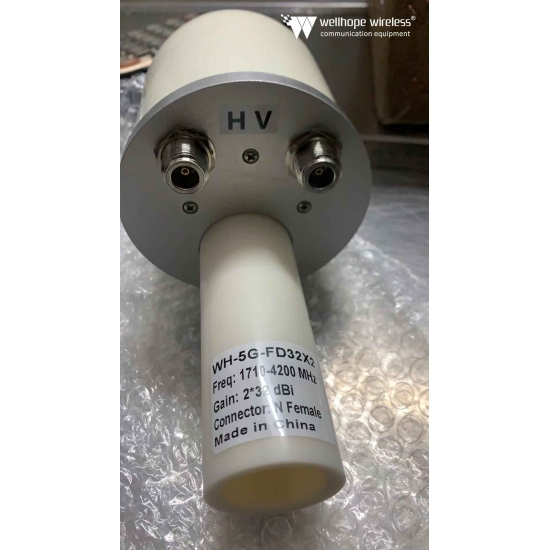

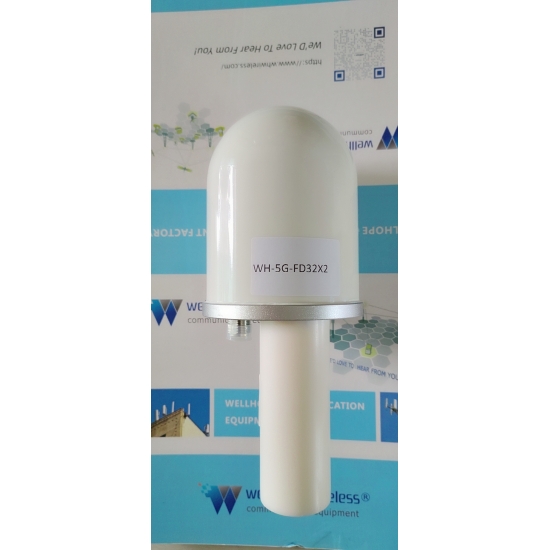

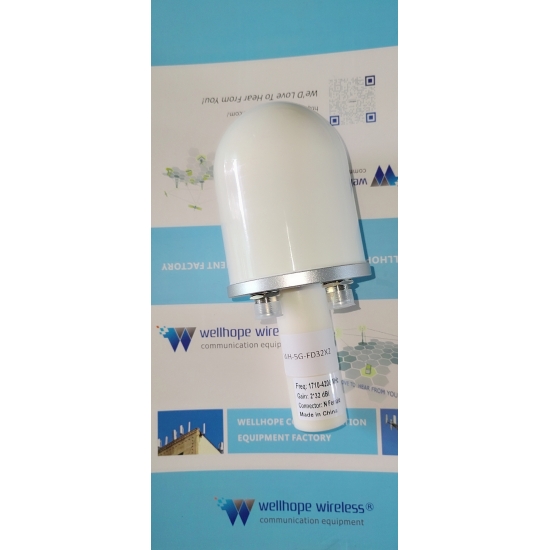

The WH-5G-FD32x2 is an advanced 5G MIMO antenna with a high gain of 22dBi, designed for wireless communication applications. This cutting-edge antenna is equipped to enhance the performance of 5G networks, supporting faster data transfer and improved connectivity. The MIMO (Multiple Input, Multiple Output) technology enables the antenna to transmit and receive multiple data streams simultaneously, optimizing signal quality and reliability.
Tailored for Internet of Things (IoT) applications, the antenna is versatile and efficient, ensuring seamless connectivity for a wide range of devices. Additionally, the WH-5G-FD22x2 serves as a powerful LoRa antenna, making it ideal for long-range, low-power communication in IoT networks. The dish antenna design further amplifies its capabilities, providing directional focus for precise and extended coverage. Whether deployed in urban environments or remote locations, this antenna is a reliable solution for demanding wireless communication needs.
brand:
whwirelessitem no.:
WH-5G-FD32x2payment:
T/Tproduct origin:
chinacolor:
whitelead time:
2 working day
Frequency Range |
1710-2700-MHz |
3300-4200-MHz |
Bandwidth |
990-MHz |
900-MHz |
Gain |
21dBi |
22dBi |
Beamwidth |
H:15.5° E:14.5° |
H:12° E:11° |
F/B Ratio |
≥28-dB |
≥30-dB |
VSWR |
≤2.5 |
≤2.5 |
Polarization |
Vertical or Horizontal |
|
Max power |
100 -W |
|
Nominal Impedance |
50 -Ω |
Connector:N female X2
Antenna Dimension:Ф0.6-M
Weight:0.3Kg
Rated Wind Velocity:60-m/s
Diameter of the Pole:Φ50~75-mm
MOQ:2PCS
SPQ:100PCS/box
Ddelivery time:5working day
Payment term:T/T
Package:plastic bag and box
Paymeter method:Paypal;Wire Transfer
Customized according client require detail
Shiping way:DHL Fedex UPS
