1:whwireless DAS panel antenna model WH-4G-BP15 offer The High Beam High Power Wide Band 600-2700MHz 15dBi Cellular 4G 3G LTE Directional Antenna is compatible with the vast majority of carrier bands and frequencies
2:Professional, robust directional antennas with high gain, also suited for very long cables;Various RF cable lengths available

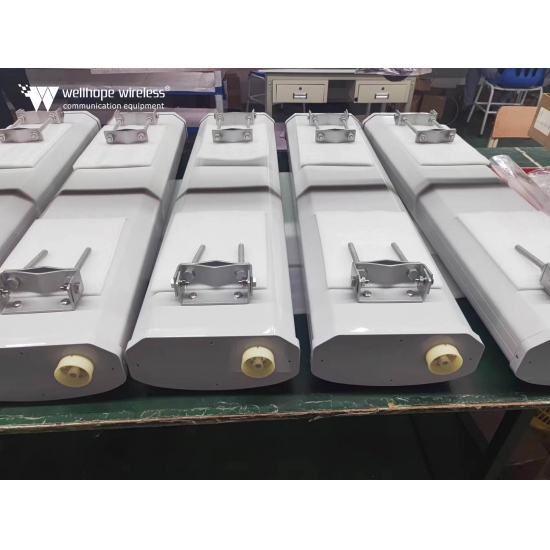

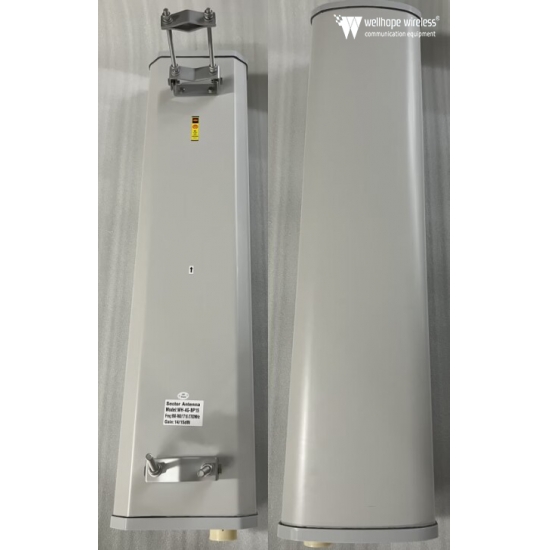

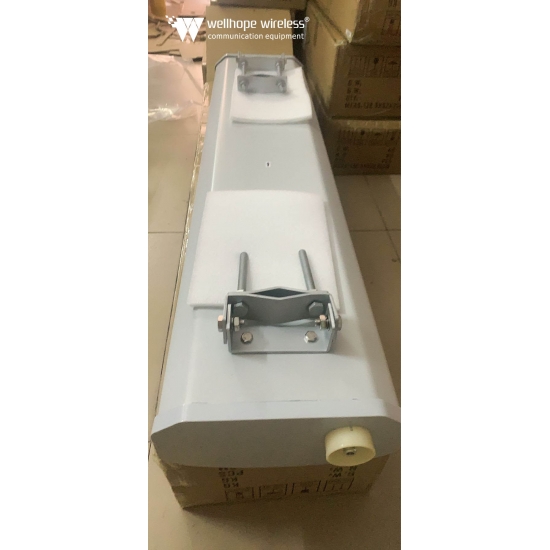

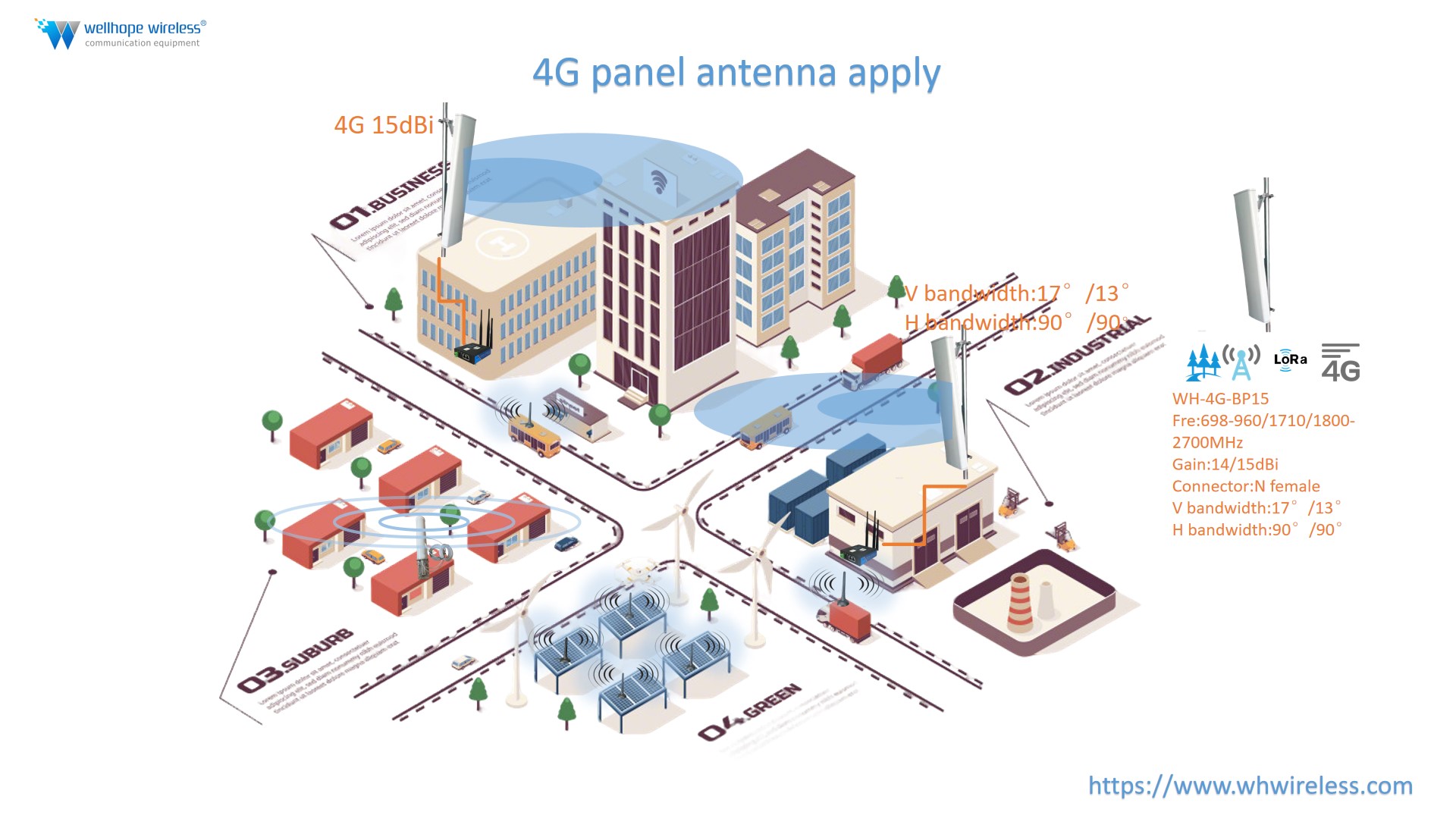

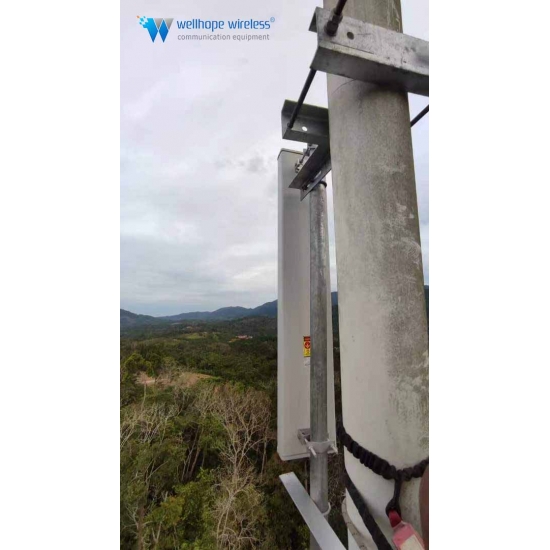

3:Professional directional antennas for the LTE full Band (700-2700MHzMHz).The 4G LTE antennas WH-4G-BP15 offer 14 or 15dBi gain (per internal antenna), are weather proof and suitable for mast installation. Connectors are N female suitable cables for many LTE routers
brand:
whwirelessitem no.:
WH-4G-BP15payment:
T/Tproduct origin:
chinacolor:
whitelead time:
7working dayFrequency range:698-960/1710/1800-2700MHz
VSWR:≤1.5/2.0
F/B ratio:≥23dB
Gain:14dBi/15dBi
Vertical Beamwidth:17°/13°
Horizontal Beamwidth:90°/90°
Max Power:100W
Polarization:Vertical
Input impedance:50Ω

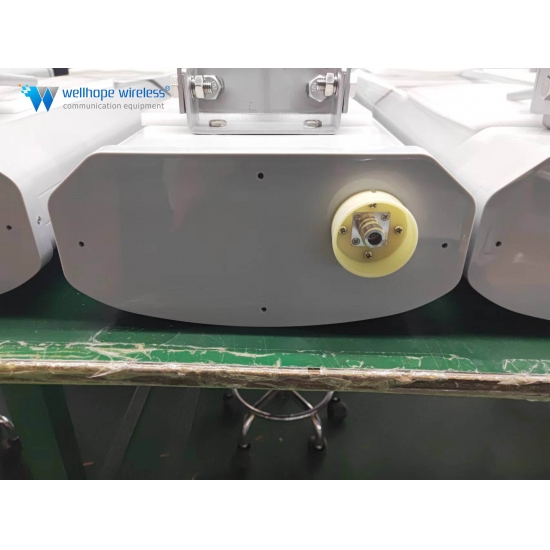

Connector:N female
Antenna dimension:1200x280x130(mm)

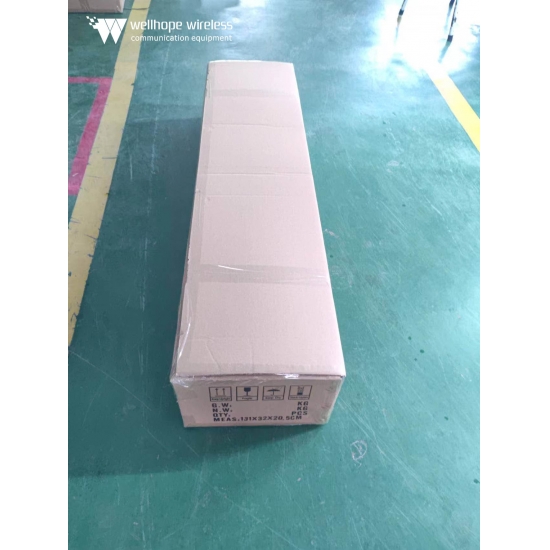

Packing dimension:1310X350X230(mm)
Rated wind velocity :60-m/s
lightning protecting:Direct-Current grounding
Operation Temperature:40℃ to+80℃
Antenna radome:PVC
Weight(kg):6
Waterproof IP66
MOQ:2PCS
SPQ:1PCS/box
Ddelivery time:5working day
Payment term:T/T

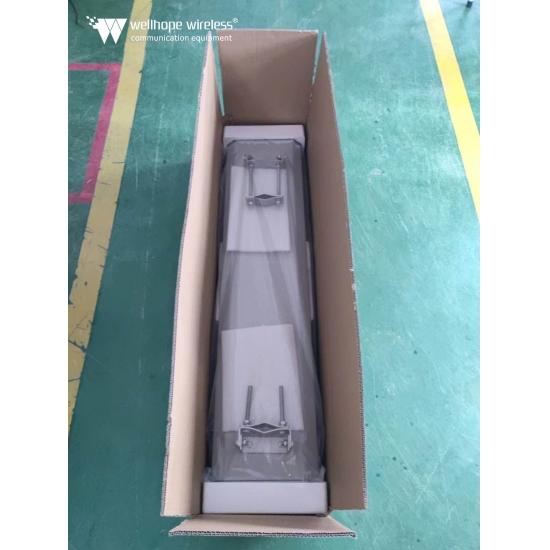

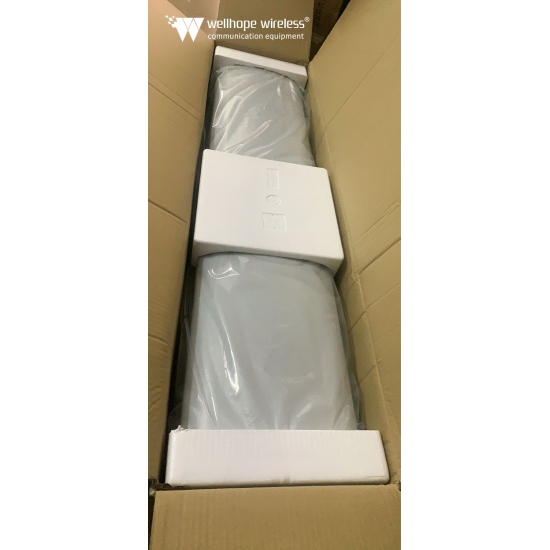

Package:plastic bag and box
Paymeter method:Paypal;Wire Transfer
Customized according client require detail
Shiping way:DHL Fedex UPS OR Air FBA
