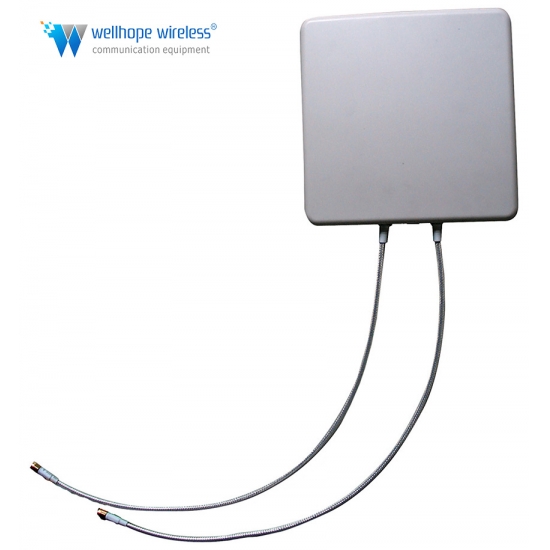

2.4GHz and 5GHz wlan flat panel 12dBi X2 antenna

GNSS flat panel antenna

Huge Frequency Range: 2400-2500MHz&5150-5850MHz X2

wide Band Antenna WiFi 5G

Weatherproof, suitable for outdoor antenna use

Includes Tilt mount for masts

N female socket

Looking for a great deal on 2.4-2.5GHz&5150-5850MHz Flat Panel Antenna Series | Single Polarization 12dBi 35deg? Explore a wide range of the best wireless antennas on Excel Wireless to find one that suits you! Besides good quality, you’ll also find plenty of discounts. Shop now.

Frequency:2400-2500MHz&5150-5850MHz, gain:12dBi, Flat Antenna series designed suitable for outdoor use in the 2.4GHz and 5GHz GNSS ISM band including IEEE 802.11b, 802.11g and 802.11n and Bluetooth applications. flat Antenna series' construction features sealed internal elements and an aesthetic UV-stable, UL flame rated white plastic dome. Can be wall or mast mounted using U-bolts. Can be installed for either vertical or horizontal polarization.


  • brand:

    whwireless
  • item no.:

    WH-2458-FP12X2
  • payment:

    T/T
  • product origin:

    china
  • color:

    white
  • lead time:

    5working day
Inquiry now

Frequency range:2400-2500MHz&5150-5850MHz

Gain:12dBi X2

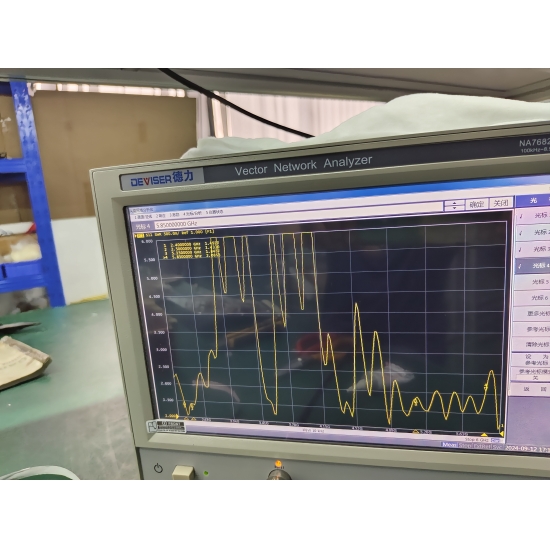

VSWR:≤1.5

polarization:Vertical

Horizontal beam width:90°

Vertical beam width:50°

Input impedance:50Ω

F/B:>12dB

Max Power:100W


mounting method:“U” bolt

antennaConnector:N female X2

weight:0.9Kg

Size:190X190X32(MM)

Rated wind velocity:210kg/h

Colour :white

Cable type:SYV50-3 X2

RF Cable length:5 meter N male—SMA male

Working Temperature:-40℃--+65℃-


Waterproof IP65

MOQ:2PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

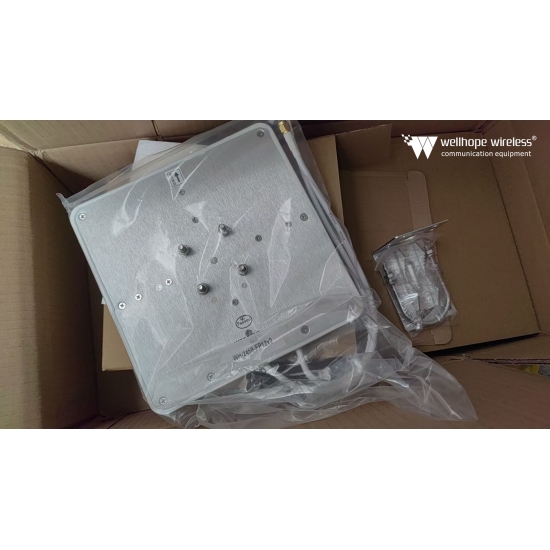

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS
