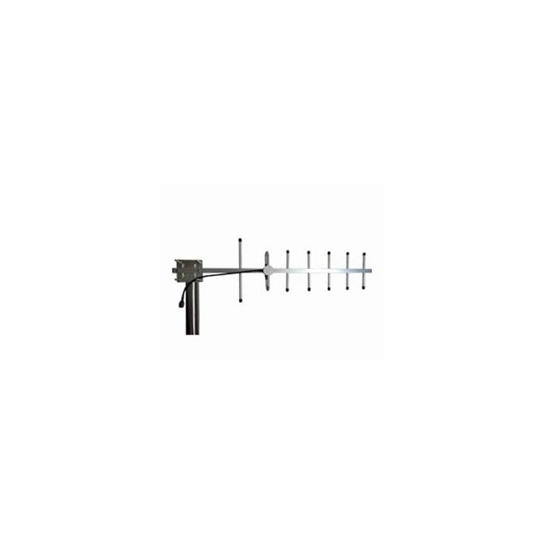

WH-900MHz-Y9 wireless M2M applications yagi antenna

WH-900MHz-Y9 wireless M2M applications yagi antenna

9dBi
SMA male
700x230mm Cellular & Wireless Video GSM/GPRS modules
900MHz spread spectrum Wireless I/O
WS-900HZ Industrial Wireless Sensor
Remote Oil Tank Monitoring Solution

brand:
whwireless
item no.:
WH-900MHz-Y9

Inquiry now

Frequency range –MHz:806-960
Bandwidth -MHz:54
Import impedance –Ω:50
V.S.W.R:≤1.5
Gain –dBi:9
Horizontal Beamwidth –°:54
Vertical Beamwidth –°:48
Front-to-back radio –dB:15
Max power –W:100

Length –m:0.45
Weight –kg:0.7
Rated wind velocity –m/s:60
Connector type:SMA male
Explanation :5 element

• GSM Gate control
• GSM gateways
• GSM alarm modules
• GSM receiver
• GSM in building cover
• Multi-SIM GSM Gateway
• Smart Meter Communication data acquisition
• 900MHz spread spectrum
• M2M Telemeter GSM Telemeter
• Remote Control System
