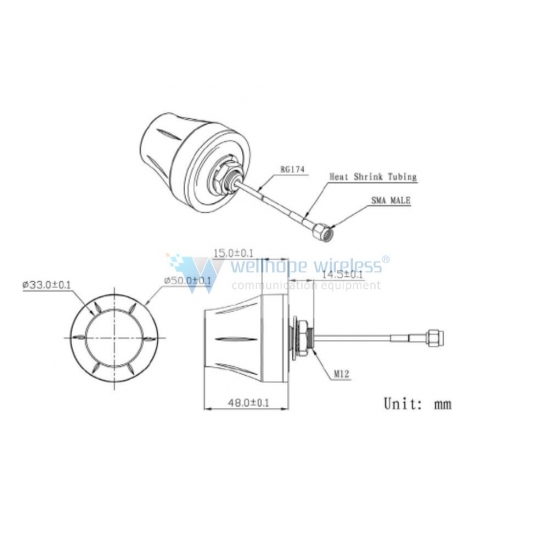

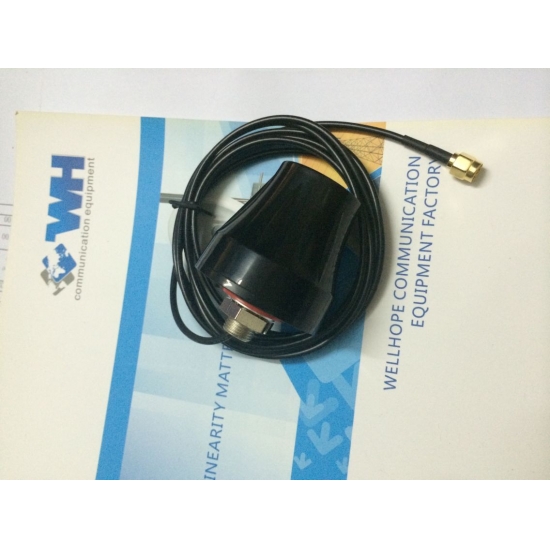

Ruggedized 3G/4G/LTE networking solution screw 4G mounting antenna

  • brand:

    whwireless
  • item no.:

    WH-4G-D2
Inquiry now

Frequency:698/960/1710/2170/2700MHz

V.S.W.R(5m):≤2.0︰1

Gain(Zenith):2 dBi

Impedance:50 Ω

Polarization:Linear


Cable:RG174 2meter

Connector:SMA/SMB/MCX or others

Radome material :ABS

Plastic Housing:Black

Mounting:Screw
