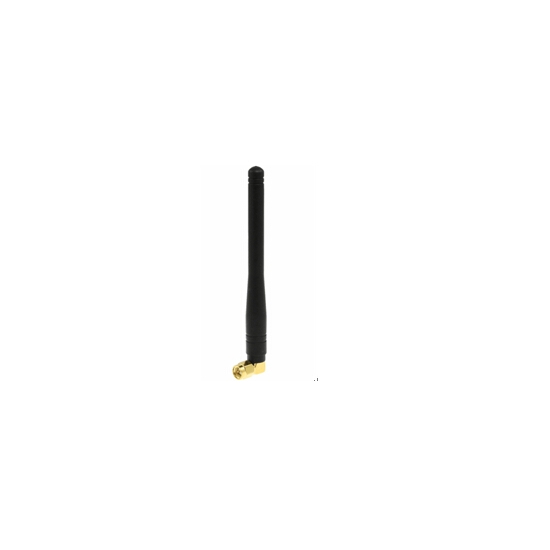

Router Broadband 3G Radio antenna

terminal 3G/LTE gateway antenna
  • brand:

    whwireless
  • item no.:

    WH-3G-R3
Inquiry now
Frequency range:824-960&1710/1900/2170MHz
Central band:136/190/270
VSWR:≤2
Gain:3.0dBi
Max Power:50W
Polarization:Vertical
Input impedance:50Ω

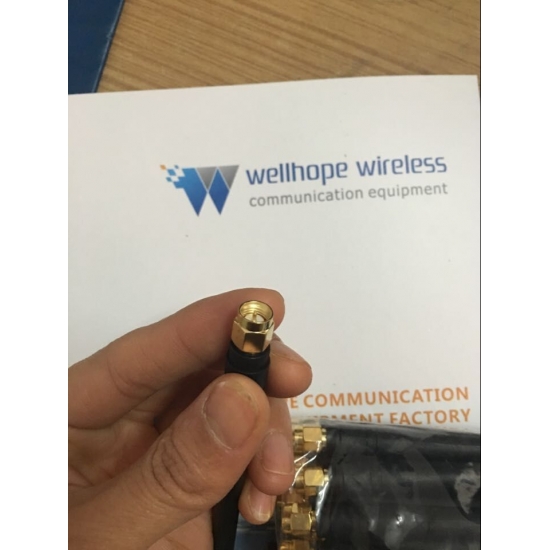

Connector:SMA MALE right angle
The thunder and lightning protecting:Direct-Current grounding

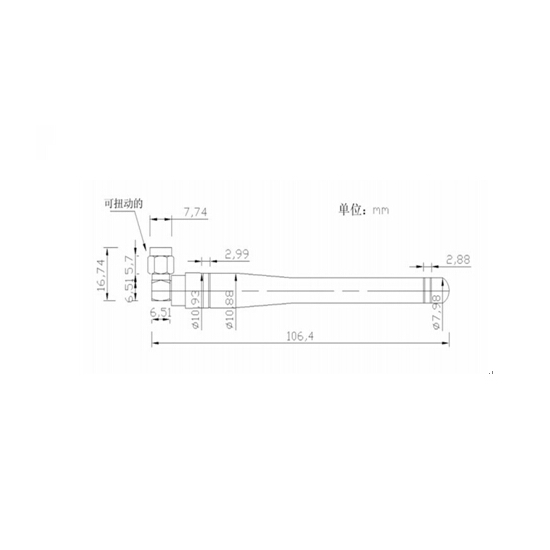

Size:φ8X 106mm
Weight:20g
Operating temperature :-40°~+60°
