Home > GPS/Glonass/BDS/Iridium Antenna > GNSS Dielectric/Helical Antenna >

GPS Modules & chip sets antenna

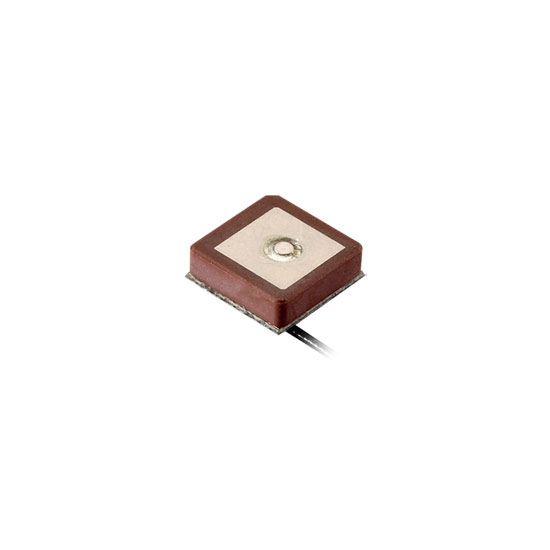

GPS Modules & chip sets GPS Dielectric antenna WH-GPS-S
GPS Modules & chip sets antenna GPS Modules & chip sets antenna GPS Modules & chip sets antenna GPS Modules & chip sets antenna GPS Modules & chip sets antenna

GPS Modules & chip sets antenna

13x13x6.5mm GPS unit for Tracking&Tracing applications

GPS tracker activation ;wireless vehicle tracking

GPS ceramic antenna with U.FL


  • brand:

    whwireless

  • item no.:

    WH-GPS-S PCB LNB

  • payment:

    T/T

  • product origin:

    china

  • color:

    gray

  • lead time：

    5working day
Inquiry now

GPS

Frequency range:1575.42MHz±3 MHz

VSWR:≤1.5

Gain:1dBi

Input impedance:50Ω

Polarization Type:RHCP

Working Termp:-40℃~+85℃

-10dB Bandwidth MHz min:15.0

Gain (Zenith 90°) dBi min:1.0

VSWR at CF max:1.3

Impedance:50 Ω

Axial Ratio dB max:5.0

LNB

Gain:20±2db

Noise Figure:＜1.5dB

Ex-band Attenuation:30dB@CF±40MHz

Supply Voltage: 3.3V DC

Current Consumption:5mA

V.S.W.R（in BW ）:＜ 2︰1




Dimension:13x13x6.5mm

MOQ:5PCS

SPQ:100PCS/box

Ddelivery time:5working day

Payment term:T/T

Package:plastic bag and box

Paymeter method:Paypal;Wire Transfer

Customized according client require detail

Shiping way:DHL Fedex UPS OR Air FBA
