1710-2170MHz mimo outdoor antenna 12X2(dBi) 7/16 D-KX2

  • brand:

    whwireless

  • item no.:

    WH-3G-012X2
Inquiry now
Frequency Range:1710-2170 (MHz)
Input Impendence:50 (Ω)
Half-power angle:H 360°/ E 10±1°
IM3（2x20W Carrier）:≤-110dBc
V.S.W.R:≤ 1.5
Gain:12X2(dBi)
Max Input Power:50 (W)
Polarization Type:Vertical

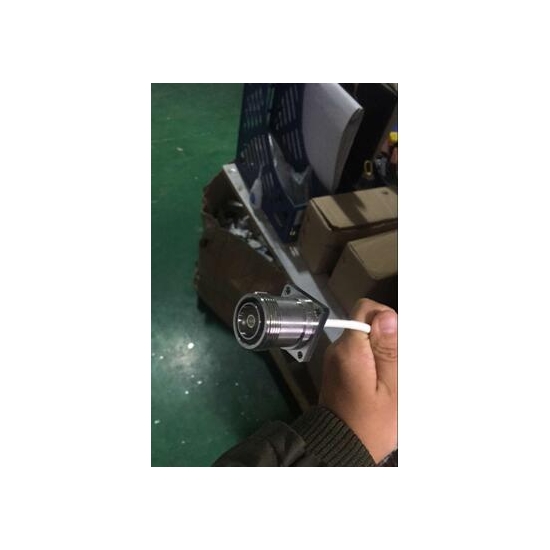

Connect Type:7/16 D-KX2
Lightning Protection:DC Ground

Working Temperature:-40℃~﹢65℃
Weight:3．8 （kg）
Pole Diameter:Φ45~φ55 mm
Radome material:Glass fiber reinforced plastic
Color:Gray
Size:Φ110x1500 (mm)
Rated Wind Velocity:210 km/h

Wireless Telemeter M2M Telemeter 3G Telemeter
3G/ LTE Multi WAN WiFi AP
3gwireless router
WAN connectivity via 3G HSPA+/CDMA networks
